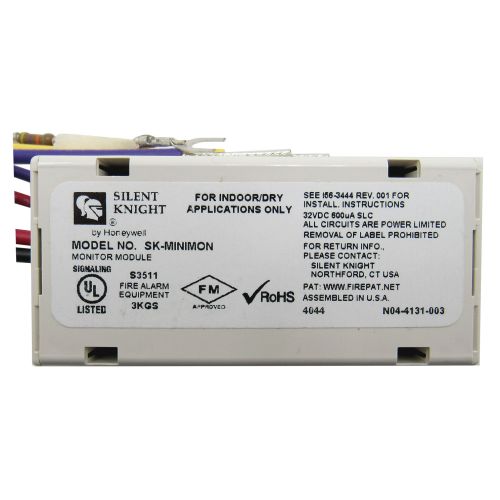

Silent Knight SK-MINIMON Addressable Mini Monitor Module for FACPs

Product Description

The Silent Knight SK-MINIMON is an addressable mini monitor module for use with Honeywell Silent Knight fire alarm control panels (FACPs). It acts as an interface to contact devices, such as waterflow switches and pull stations. The SK-MINIMON supports Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions.

• Single contact monitor
• Support for Class B (Style B) contact monitor wiring
• Small and lightweight size allows for flexible mounting options

Product Highlights

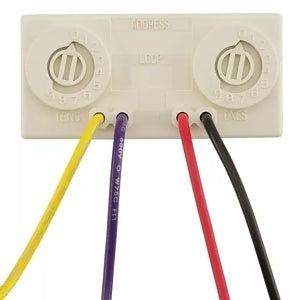

Compact and lightweight, the SK-MINIMON offers flexible mounting and rotary address switches for fast installation. Compatible with IntelliKnight series FACPs.

Product Information

Standard Information

• Brand: Silent Knight
• Manufacturer Part Number: SK-MINIMON
• Country of Origin: Mexico

Technical Specifications

• ADI Part Number: SK-MINIMON
• Brand Name: Silent Knight by Honeywell
• Manufacturer: Honeywell International, Inc
• Manufacturer Part Number: SK-MINIMON
• Product Model: SK-MINIMON
• Product Name: SK-MINIMON Intelligent Mini Monitor Module
• Product Type: Alarm Control Panel Monitor Module
• Device Supported: Control Panel
• Maximum Operating Temperature: 48.9°C
• Minimum Operating Temperature: 0°C
• Depth: 0.5"
• Height: 1.3"
• Width: 2.8"
• Input Voltage: 32V DC
• Compatibility: 5700: Addressable fire alarm control panel, 5808: Addressable fire alarm control panel, 5820XL: Addressable fire alarm control panel, 5820XL-EVS: Addressable fire alarm control panel with an emergency voice system, 6700: Addressable fire alarm control panel, 6808: Addressable fire alarm control panel, 6820: Addressable fire alarm control panel, 6820EVS: Addressable fire alarm control panel with an emergency voice system., Honeywell Silent Knight fire alarm control panels:
• Item Package Quantity: 1
• Operating Voltage: 15 – 32VDC
• SLC loop resistance: 40W max
• Operating Temperature: 0°C – 49°C
• Humidity: 10% – 93% non-condensing
