Silent Knight SK-DUCTW intelligent non-relay photoelectric low-flow smoke detector housing

Product Description

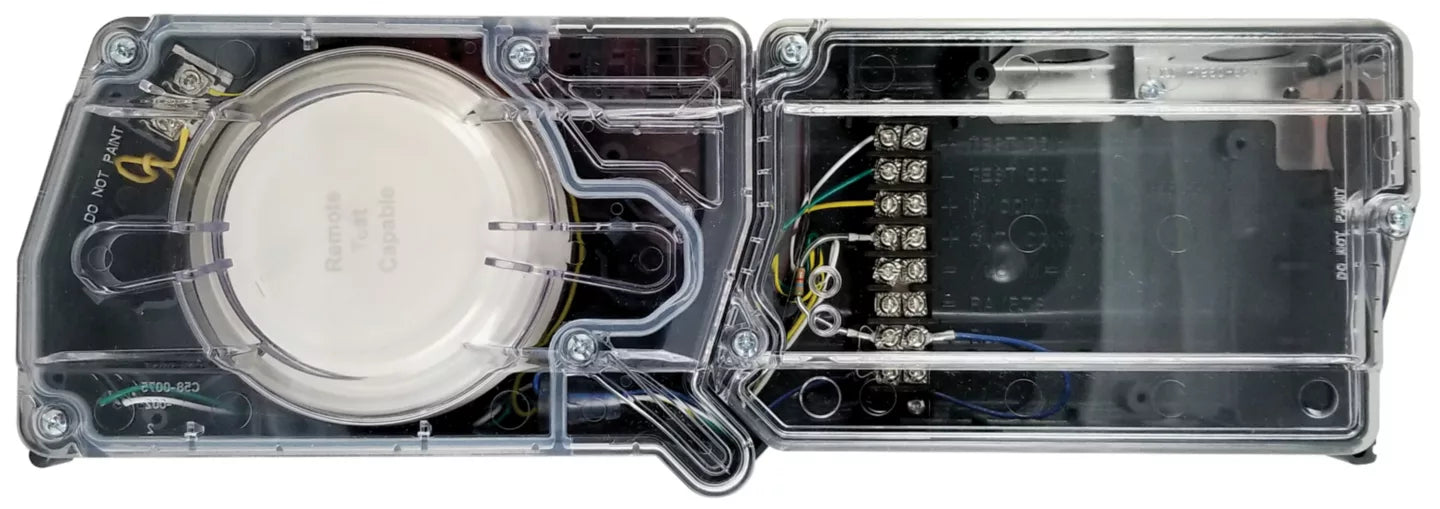

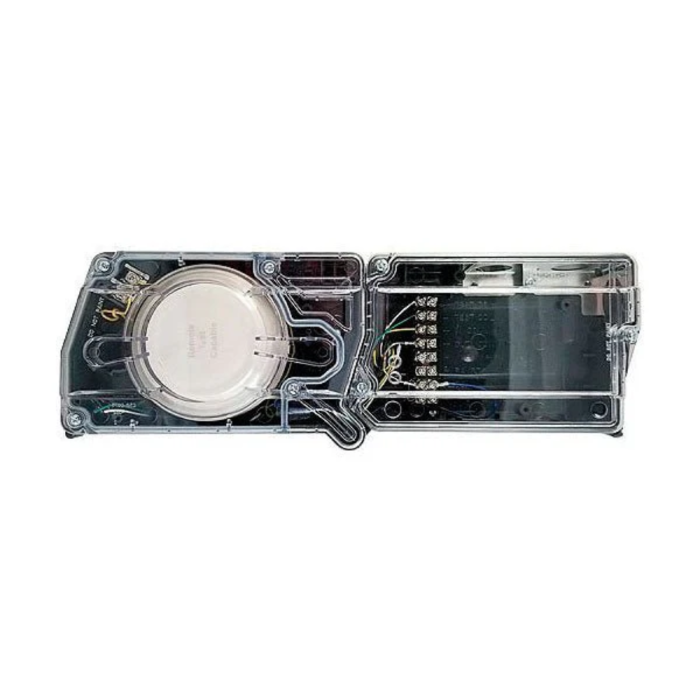

The Silent Knight SK-DUCTW is an intelligent non-relay photoelectric low-flow smoke detector housing with a factory-installed photoelectric smoke sensor. Designed for HVAC systems, it detects smoke and communicates the condition to a compatible Honeywell Silent Knight control panel. The unit features a pivoting housing for square or rectangular footprints, facilitating easy mounting to round or rectangular ducts.

• Photoelectric, integrated low-flow technology
• Air velocity rating from 100 ft/min – 4,000 ft/min (0.5 m/s – 20.32 m/s)
• Versatile mounting options: square or rectangular configuration

Product Highlights

Detects smoke in HVAC ducts with versatile mounting and broad environmental tolerance. Features include a clear cover for visual inspection and remote testing capability.

Product Information

Standard Information

• Brand: Silent Knight
• Manufacturer Part Number: SK-DUCTW
• Country of Origin: MX

Technical Specifications

• Manufacturer: Honeywell
• Brand: Silent Knight
• Condition: New
• Type: Duct Detector
• Detectable Medium: Smoke
• Detection Method: Photoelectric
• Production Status: Active
• Operating Temperature: -4°F – 158°F (-20°C – 70°C)
• Humidity: 0% – 93% non-condensing
• Air Velocity: 100 ft/min – 4,000 ft/min (0.5 m/s – 20.32 m/s)
