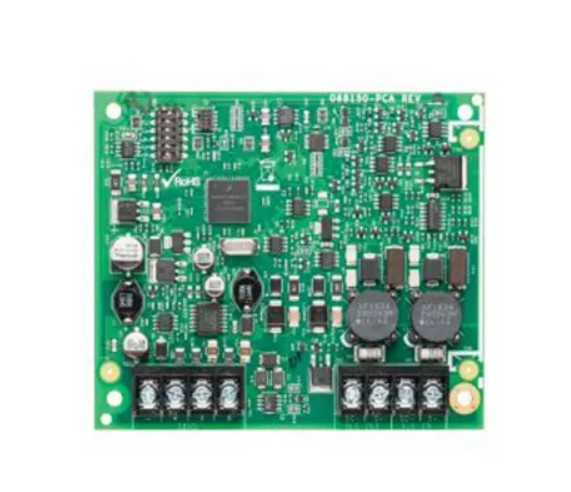

Silent Knight SK-6815 SLC Loop Expander for SK Devices

Product Description

The Silent Knight SK-6815 is a signaling line circuit (SLC) expander for use with Honeywell Silent Knight 6820 or 6820EVS fire alarm control panels (FACPs) using System Sensor (SK) protocol. The 6815 signaling circuit has the same functionality as the built-in SLC and supports the same addressable devices. It communicates with the FACP via an RS 485 system bus.

• Determined by maximum point counts, the number of 6815 SLCs offers new design and installation opportunities with 1,110 available points on the 6820 and 6820EVS.
• Use the 5815RMK mounting kit to securely house more SLCs within one system.
• Pair with the separate 6860 remote annunciator for additional installation and operating options.

Product Highlights

The SK-6815 SLC expander customizes configurations in large or complex installs and supports up to 159 SK devices and 159 SK modules. It can also be used for SWIFT wireless detection.

Product Information

Standard Information

• Brand: Silent Knight
• Manufacturer Part Number: SK-6815
• Country of Origin: United States

Technical Specifications

• ADI Part Number: SK-6815
• Brand Name: Silent Knight by Honeywell
• Manufacturer: Honeywell International, Inc
• Manufacturer Part Number: 006815
• Product Model: 006815
• Product Name: 6815 Signaling Line Circuit Expander
• Product Series: SK
• Product Type: Signaling Line Circuit Expander
• Device Supported: Fire Alarm Control Panel
• Maximum Operating Temperature: 49°C
• Minimum Operating Temperature: 0°C
• Input Voltage: 24V DC
• Compatibility: 6820: Addressable fire alarm control panel with up to 1,110 addressable points 6820EVS: Addressable fire alarm control panel with an emergency voice system, up to 1,110 addressable points
