Signify XI100C150V091BSY1M Philips XI100C150V091BSY1M 100W Driver

Product Description

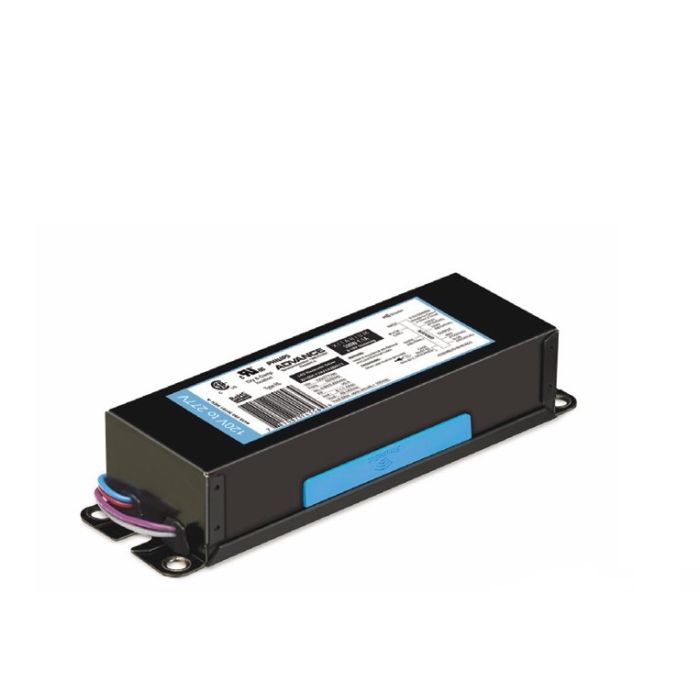

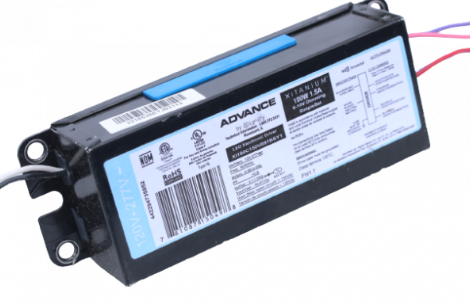

The SIGNIFY XI100C150V091BSY1M Philips XI100C150V091BSY1M Xitanium LED Driver operates at 100W with an output current of 0.1-1.5A and an input voltage of 120-277V, offering dimming functionality. This constant current LED driver is programmable with SimpleSet technology, providing flexibility for outdoor applications. It has a wide operating window and allows for luminaire designs of varying sizes and lumen levels.

• Xitanium LED Driver
• 100W Power
• 0.1-1.5A Output Current

Product Highlights

This LED driver is designed for optimal performance and adaptability in diverse lighting setups.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: XI100C150V091BSY1M

Technical Specifications

• Brand: SIGNIFY
• MPN: XI100C150V091BSY1M
• Wattage: 100W
• Current: 0.1-1.5A
• Voltage: 120-277V
• Type: LED Driver
• Input Voltage: 120-277 V
• Length: 5.43 Inches
• Width: 2.32 Inches
• Output Voltage: 30-91 V
• Series: Xitanium
• Amperage Rating: 0.1-1.5 A
• Power Factor: >0.95 @ Max Load
• Height: 1.48 Inches
• Temperature Rating: -40°C to +55°C
• Major Group: LED Drivers
• Category: LED Driver
• Fixture Type: LED
• Driver Type: Constant-Current-Programmable
• Max Output Power: 100W
• Max Output Current: 1500mA
• Output Current Factory Setting: 1250mA
• Max Output Voltage: 91V
• Dimming: Analog (0-10V)
• Location Rating: Dry/Damp
• UL Class: Class 2
• Features: Programmable output current
• Case Size: 12
