Signify XI055C180V054BSJ1M ADVANCE XITANIUM 55W 0.1-1.8A SS 120-277V J 6KV

Product Description

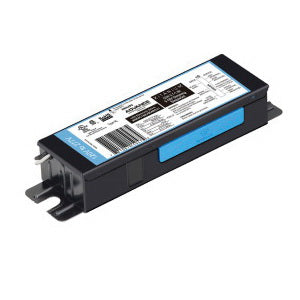

Signify offers the XI055C180V054BSJ1M Advance Xitanium LED Driver designed for efficiency. This dimmable driver operates with a voltage range of 120 to 277 VAC and provides a 54 VAC output. It has a power rating of fifty-five watts and a maximum output current of 1.8 amps.

• Programmable output current using SimpleSet technology.
• Class 2 voltage current window coverage.
• High surge protection rating up to 6 kV, complying with ANSI C82.77-5 standards.

Product Highlights

This driver is ideal for outdoor applications, including area, roadway, and parking garage lighting. It supports 0 to 10 VDC dimming, allowing for energy-efficient lighting solutions.

Product Information

Standard Information

• Manufacturer: Signify
• Product Name: XI055C180V054BSJ1M ADVANCE XITANIUM LED Driver

Technical Specifications

• Amperage Rating: 1.8 A
• Input Voltage: 120 to 277 VAC
• Output Voltage: 54 VAC
• Power Rating: 55 W
• Temperature Rating: -40 to 55 deg C
• Height: 1.11 in
• Width: 1.73 in
• Length: 6.61 in
• Power Factor: >0.95
• Standards/Approvals: BAA Compliant, CSA 250.13, ETL Listed, FCC Title 47 Part 15 Class A, UL 8750, UL Listed for Damp and Dry Locations
