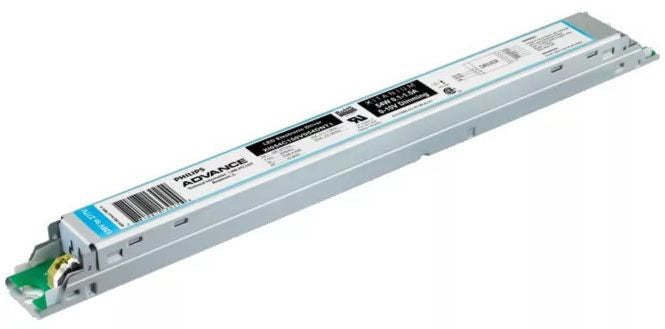

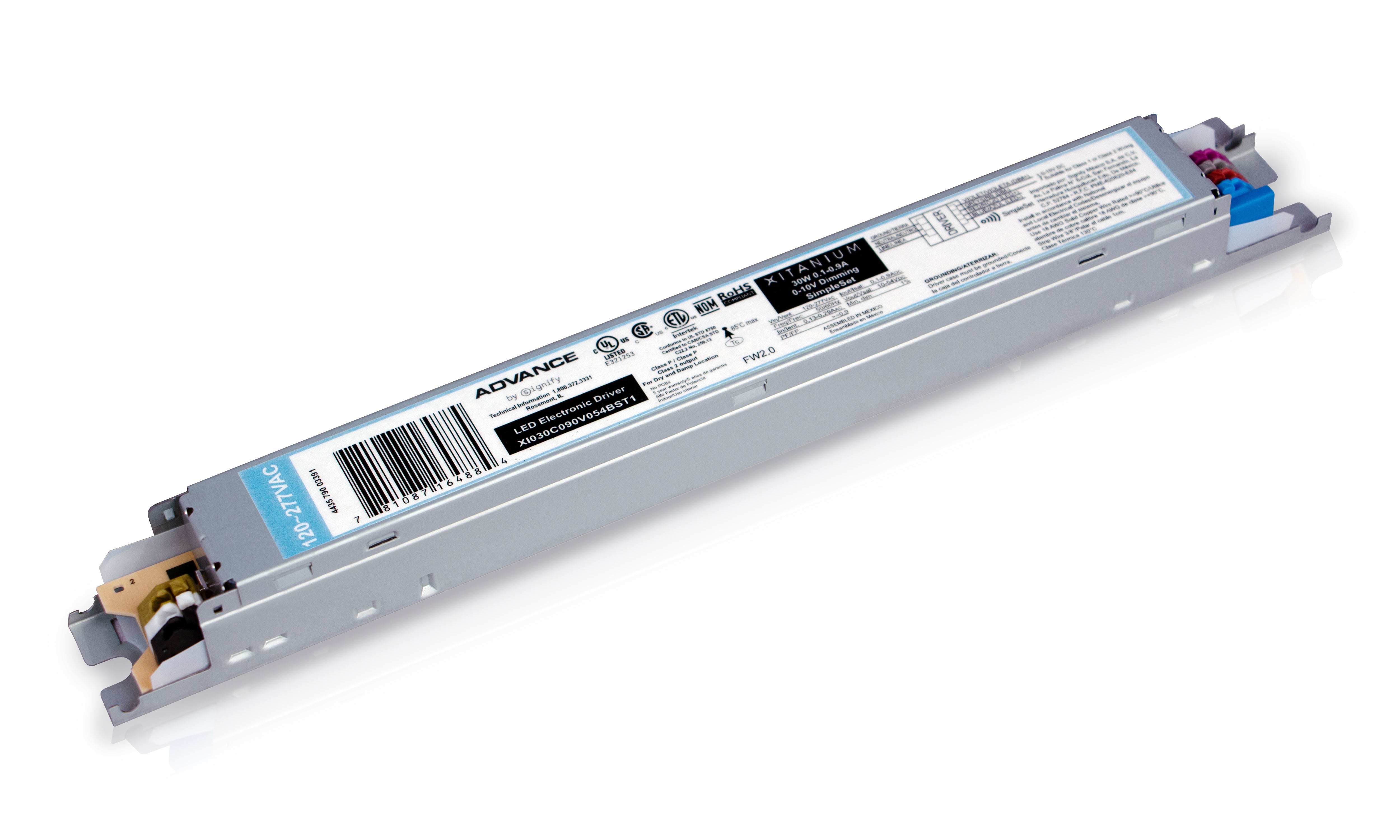

Signify XI054C150V054BST1M Advance Xitanium Dimmable LED Driver 54 W

Product Description

The SIGNIFY XI054C150V054BST1M Advance Xitanium dimmable LED driver is designed to provide OEMs with flexibility. Compatible with standard 0 to 10 VDC dimming systems, it delivers smooth dimming performance down to 1%. It features SimpleSet technology for precise tuning of drive currents, selectable dimming curves and adjustable minimum dimming levels. It has an input voltage of 120 to 277 VAC and an output of 54 VAC with 54 W power rating.

• Dimmable LED Driver
• 120 to 277 VAC Input
• 54 VAC Output

Product Highlights

This LED driver features SimpleSet technology, wide operating windows, and a slim profile for easy integration into linear fixtures.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: XI054C150V054BST1M
• Country of Origin: USA

Technical Specifications

• Input Voltage: 120 to 277 VAC
• Output Voltage: 54 VAC
• Power Rating: 54 W
• Length: 14.17 in
• Width: 1.18 in
• Dimmable: Yes
• Current: 1.5 A
• Power Factor: >0.95
• Height: 1 in
• Operating Temperature: -20 to 50 deg C
• Amperage Rating: 1.5 A
• Application: Troffer and Pendant, Office, Education, Healthcare and Retail
• Standards/Approvals: BAA Compliant|CSA C22.2 #250.13-12|ETL Listed|FCC Title 47 Part 15 Class A|UL 8750|UL 1310|UL Listed for Damp and Dry Locations
• Temperature Rating: -20 to 50 deg C
• Type: Dimmable
• Manufacturer: Signify
• Wattage: 54 Watt
• Certifications and Standards: EU RoHS, ARRA, BAA
• Country of Origin: USA
