Product Description

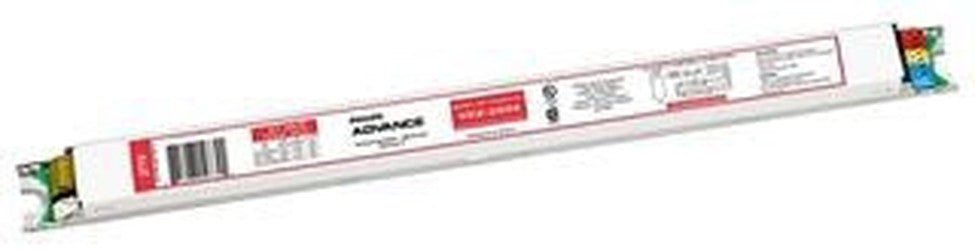

Signify VEZ15435M is an electronic dimming ballast designed for F54T5HO lamps. It operates at 277 volts and is suitable for applications where dimming capabilities are needed. This ballast is ideal for use in offices, auditoriums, and other environments requiring flexible lighting control.
- Compatible with F54T5HO lamps
- Dimmable for energy efficiency
- Operational frequency of 60 Hz
Product Highlights
The Signify VEZ15435M combines reliability with functionality. It features programmed start technology and a high power factor, ensuring efficient operation. The ballast supports a single lamp with a wide range of wattage settings.
Product Information
Standard Information
-
Brand: Signify
-
Manufacturer PN: VEZ15435M
Technical Specifications
-
Amperage Rating: 0.23 A
-
Application: Outdoor Applications, Libraries, Office Spaces
-
Ballast Factor: 0.03 to 1
-
Dimensions: 16.7 inches L x 1.18 inches W x 1 inches H
-
Dimmable: Yes
-
Frequency Rating: 60 Hz
-
Lamp Type: F54T5HO
-
Lamp Wattage: 54 W
-
Material: Metal
-
Minimum Starting Temperature: 50 degrees F
-
Number of Lamps: 1
-
Power Factor: 0.98
-
Voltage Rating: 277 VAC
-
Wattage: 13 to 63 W
