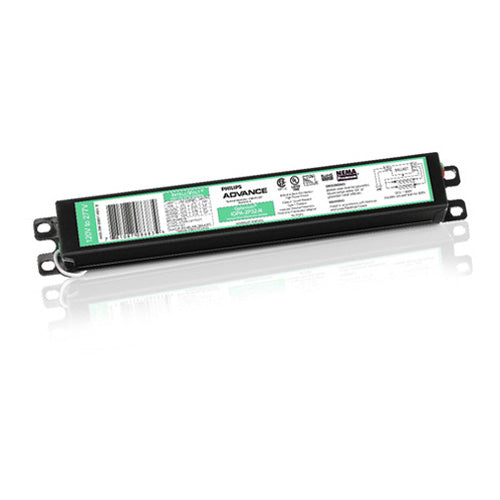

Signify IOPA4P32N35I ADVANCE ELE BALLAST (4) F32T8 120-277V I PACK

Product Description

Signify offers the IOPA4P32N35I, a reliable electronic fluorescent ballast designed for T8 lamps with a wattage of thirty-two.

• Works with four T8 lamps.
• Input voltage range of one hundred twenty to two hundred seventy-seven VAC.
• Features thermal protection Class P.

Product Highlights

Designed for outdoor applications, the IOPA4P32N35I supports instant start with a low temperature minimum startup limit of negative twenty degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Signify
• Manufacturer Part Number: IOPA4P32N35I

Technical Specifications

• Wattage: 109/106 W
• Lamp Type: T8
• Dimensions: 9.5 in L x 1.3 in W x 1 in H
• Dimmable: No
• Ballast Factor: 0.87
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 0.39 to 0.92 A
• Frequency Rating: 50/60 Hz
• Number of Lamps: 4
• Material: Metal
• Minimum Starting Temperature: -20 deg F
• Power Factor: 0.87
• Thermal Protection: Class P
• Total Harmonic Distortion: 10 %
• Temperature Range: 70 deg C
• Standards/Approvals: RoHS Compliant, UL Listed, CSA Certified
