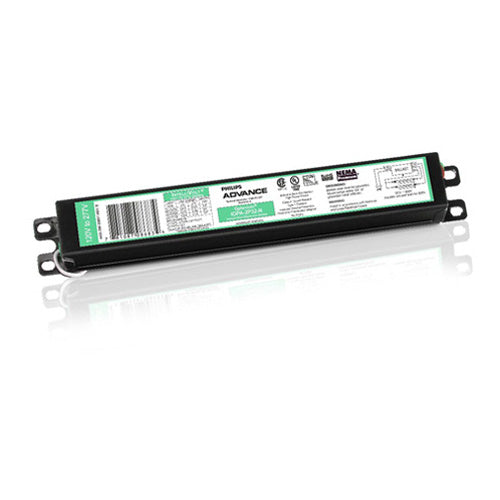

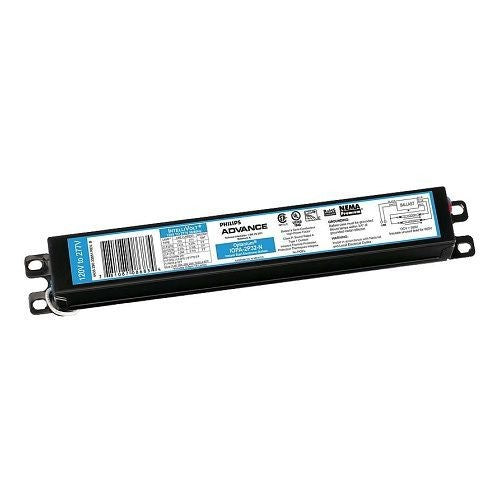

Signify IOP4P32LWN35I Advance Electronic Fluorescent Ballast 32 W

Product Description

The SIGNIFY IOP4P32LWN35I Advance OPTANIUM electronic fluorescent ballast supports T8 lamps and 32 W lamps with a voltage of 120 to 277 VAC and instant/rapid starting method, with a ballast factor of 0.78. It is suitable for outdoor applications.

• Supports T8 lamps
• Operates on 120 to 277 VAC
• Features instant/rapid starting

Product Highlights

This electronic fluorescent ballast is reliable and energy efficient, with lamp striation reduction technology and a high power factor.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: IOP4P32LWN35I

Technical Specifications

• Lamp Type: T8
• Voltage Rating: 120 to 277 VAC
• Starting Method: Instant/Rapid
• Ballast Factor: 0.78
• Amperage Rating: 0.27 to 0.62 A
• Application: Outdoor Applications
• Dimmable: No
• Frequency Rating: 50/60 Hz
• Material: Metal
• Minimum Starting Temperature: -20 deg F
• Number of Lamps: 4
• Power Factor: 0.98
• Standards/Approvals: UL Listed|CSA Certified
• Temperature Range: 70 deg C
• Thermal Protection: Class P
• Total Harmonic Distortion: 10 %
• Wiring: Parallel
• Circuit Type: HPF
• RoHS Compliant: Yes
• Housing Material: Metal
• Ignition Time: 0.1 Second
• Lamp Current Crest Factor: 1.6
• Wire Size: 18 AWG
• Wire Type: Solid
• Ballast To Lamp Distance: 20 Foot (Remote/Tandem/Through)
