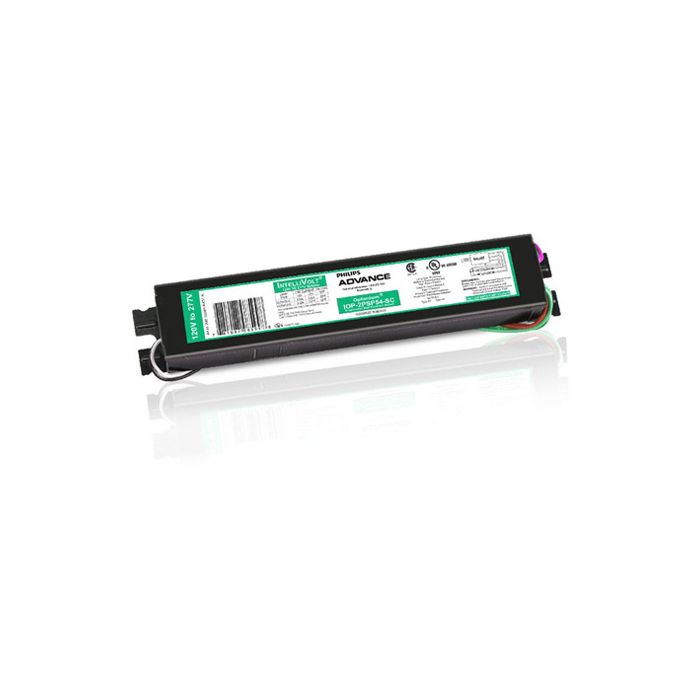

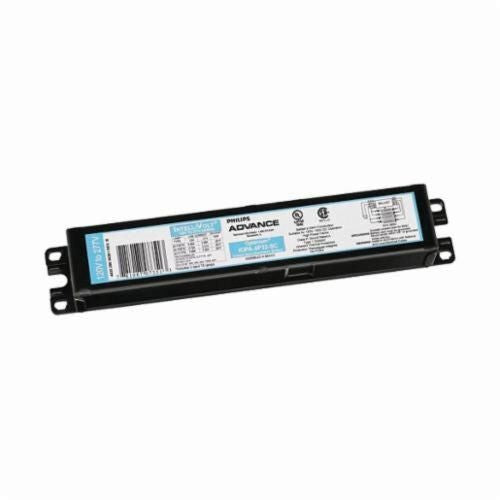

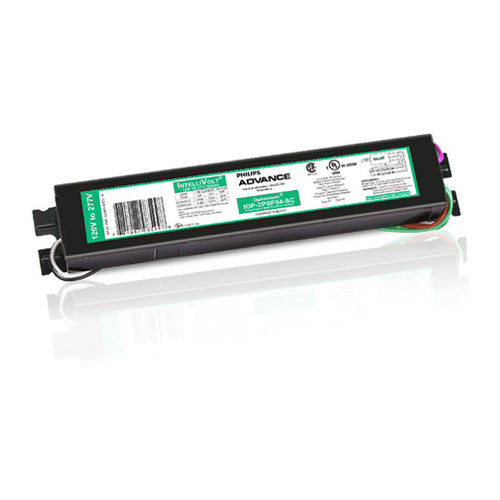

Signify IOP3PSP32SC35I Electronic Fluorescent Ballast 32 W

Product Description

The SIGNIFY IOP3PSP32SC35I electronic fluorescent ballast supports T8 lamps and operates at 120 to 277 VAC. It is designed for use with 32 W lamps and features a programmed/rapid start. The ballast has a factor of 0.88 and is suitable for outdoor applications.

• High power factor
• Programmed rapid start extends lamp life
• Suitable for outdoor applications

Product Highlights

This electronic ballast is designed for T8 lamps, operates at 120 to 277 VAC, and features a programmed/rapid start.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: IOP3PSP32SC35I
• Country of Origin: US - United States

Technical Specifications

• Lamp Type: T8
• Wattage: 32 W
• Voltage Rating: 120 to 277 VAC
• Starting Method: Programmed/Rapid
• Ballast Factor: 0.88
• MPN: IOP3PSP32SC35I
• Brand: SIGNIFY
• Amperage Rating: 0.31 to 0.71 A
• Application: Outdoor Applications
• Dimmable: No
• Frequency Rating: 50/60 Hz
• Lamp Wattage: 32 W
• Material: Metal
• Power Factor: 0.98
• Standards/Approvals: CSA Certified|UL Listed
• Start Type: Programmed/Rapid
• Temperature Range: 70 deg C
• Total Harmonic Distortion: 10 %
• Input Voltage: 120-277
• Ballast Technology: Electronic
