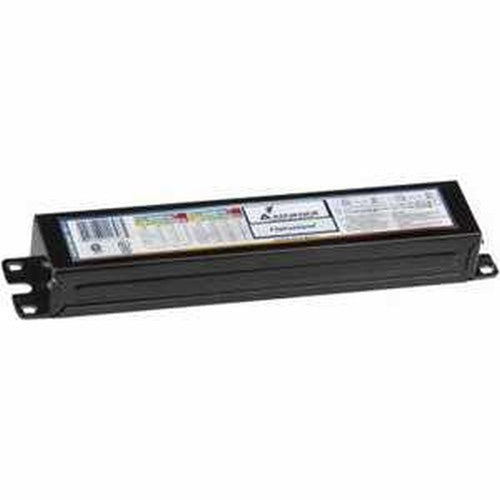

Signify IOP2P59N35I Advance Ele Ballast (2) F96T8 120-277V IOP2P59N35I

Product Description

The Signify IOP2P59N35I Advance Electronic Fluorescent Ballast is designed for T8 Slimline lamps. It operates at a power range of 120 to 277 volts and supports two lamps. This ballast ensures an instant start feature and operates efficiently with a low total harmonic distortion. The compact design makes it a suitable choice for various lighting applications.

• Operates two T8 Slimline lamps.
• Voltage range of 120 to 277 volts.
• Instant start feature with low harmonic distortion.

Product Highlights

This ballast is engineered for energy efficiency and reliability, making it an ideal option for commercial lighting setups.

Product Information

Standard Information

• Manufacturer: Signify
• Manufacturer Part Number: IOP2P59N35I

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 0.4 to 0.95 A
• Frequency Rating: 50/60 Hz
• Wattage: 113/111 W
• Ballast Factor: 0.87
• Power Factor: 0.98
• Dimensions: 9.5 in L x 1.3 in W x 1 in H
• Enclosure: NEMA 23
• Temperature Range: 70 deg C
• Start Type: Instant
• Dimmable: No
• Standards/Approvals: CSA Certified, UL Listed
• Application: Outdoor Applications
• Number of Lamps: 2
• Lamp Wattage: 59 W
• Total Harmonic Distortion: 10 %
