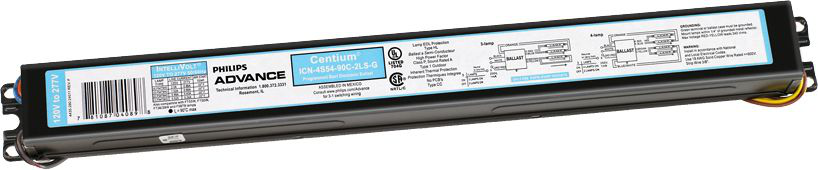

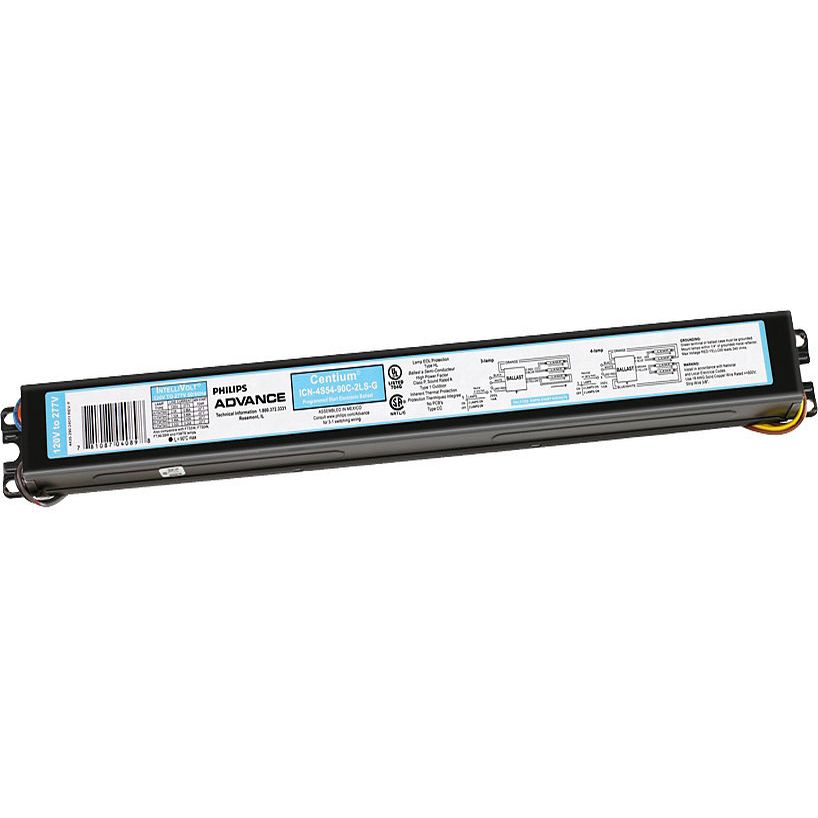

Signify ICN4S5490C2LSG35M Philips Advance ICN4S5490C2LSG35M 120/277 Volt 50/60 Hz 54 W 4-Lamp T5 Electronic Ballast

Product Description

The Signify ICN4S5490C2LSG35M is a Philips Advance electronic ballast designed for T5HO lamps. It operates with a voltage range from one hundred twenty to two hundred seventy-seven volts and a frequency of fifty to sixty hertz. This ballast supports four lamps with a wattage of fifty-four. It is suitable for various applications, including commercial settings.

• Works with 120-277 Volt input
• Electronic ballast for four T5HO lamps
• High power factor and low THD

Product Highlights

The ICN4S5490C2LSG35M offers reliability in lighting solutions with excellent performance in high ambient temperatures.

Product Information

Standard Information

• Brand: Signify
• Manufacturer: Advance Transformer

Technical Specifications

• Input Voltage: 120/277 V
• Wattage: 54 W
• Amperage: 0.86 to 2 A
• Ballast Factor: 1
• Power Factor: 0.98
• Lamp Type: T5HO
• Number of Lamps: 4
• Dimensions: 16.7 in L x 1.7 in W x 1.18 in H
• Weight: 2.738 lb
• Housing Material: Metal
• Temperature Rating: 90 deg C
• Thermal Protection: Class I
• Standards/Approvals: CSA Certified, UL Listed
• Manufacturer Part Number: ICN4S5490C2LSG35M
• Total Harmonic Distortion: 10 %
• Input Wattage: 240/234 W
