Product Description

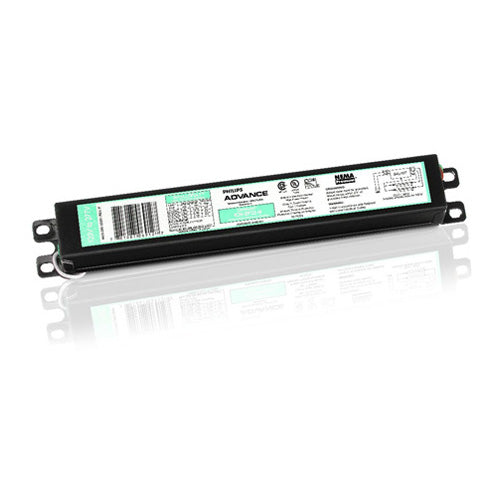

The SIGNIFY ICN4P32N35I is an electronic fluorescent ballast from Advance Centium designed for T8 lamps. This ballast supports 32 W lamps and operates on 120 to 277 VAC. It features lamp striation reduction technology and is energy efficient.
- Reliable
- Energy efficient
- Commercial grade specifications
Product Highlights
Ideal for use in hotels, offices, schools, restaurants, and department stores. Operates with F32T8 and F32T8/ES lamp types.
Product Information
Standard Information
-
Brand: SIGNIFY
-
Manufacturer Part Number: ICN4P32N35I
-
Country of Origin: N/A
Technical Specifications
-
Lamp Type: T8
-
Wattage: 32 W
-
Voltage: 120 to 277 VAC
-
Ballast Type: Electronic
-
Starting Method: Instant
-
Ballast Factor: 0.89
-
Amperage: 0.41 to 0.94 A
-
Frequency: 50/60 Hz
-
Minimum Starting Temperature: 0 deg F
-
Total Harmonic Distortion: 10 %
-
Power Factor: 0.98
-
Number of Lamps: 4 Lamps
-
Maximum Case Temperature: 70 deg C
-
Enclosure Material: Metal
-
Lamp Wattage: 32 W
-
Manufacturer Part Number: ICN4P32N35I
-
Material: Metal
-
Standards/Approvals: CSA Certified|UL Listed
-
Start Type: Instant
-
Temperature Range: 70 deg C
-
Voltage Rating: 120 to 277 VAC
-
Ballast Input Voltage: 120/277 V
-
Ballast Technology: Electronic
-
No. of Lamps: 3 or 4
-
Input Voltage: 120/277 V
-
Wire Size: 18 AWG
-
Wire Type: Solid
-
Housing Material: Metal
-
Certifications and Standards: EU RoHS, ARRA, BAA
-
Brand: Advance
-
UPC: 781087091517
