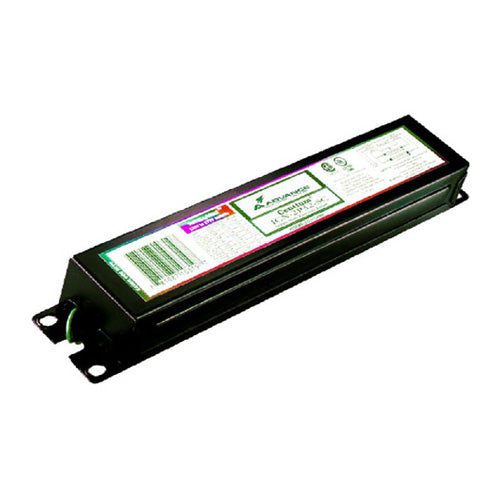

Signify ICN2S40N35I Advance Electronic Fluorescent Ballast 40 W

Product Description

The Signify ICN2S40N35I is an electronic fluorescent ballast designed for T12 lamps. It supports a wattage of 40 W and operates on a voltage range of 120 to 277 VAC. This ballast features a rapid starting method and a ballast factor of 0.85. Ideal for a variety of applications.

• Designed for T12 lamps
• Operates on a voltage range of 120 to 277 VAC
• Features a rapid starting method

Product Highlights

Electronic fluorescent ballast for T12 lamps, supporting 40W, 120-277 VAC, and rapid start.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: ICN2S40N35I
• Country of Origin: US - United States

Technical Specifications

• Lamp Type: T12
• Wattage: 40 W
• Voltage: 120 to 277 VAC
• Ballast Type: Electronic Fluorescent
• Starting Method: Rapid
• Ballast Factor: 0.85
• Lamp Wattage: 40 W
• Frequency: 60 Hz
• Minimum Starting Temperature: 50 deg F
• Total Harmonic Distortion: 0.1
• Power Factor: 0.85
• Number of Lamps: 2 Lamps
• Maximum Case Temperature: 70 deg C
• Enclosure Material: Metal
• Current: 0.25 to 0.61 A
• Manufacturer Part Number: ICN2S40N35I
• Standards/Approvals: RoHS Compliant|UL Listed|CSA Certified|DOE Certified|CSA-E Certified
• Start Type: Rapid
• Temperature Range: 70 deg C
• Voltage Rating: 120 to 277 VAC
• Lamp Watts: 40W
• Ballast Input Voltage: 120/277 V
• Ballast Technology: Electronic
• Frequency Rating: 50/60 Hz
• Manufacturer: Signify
