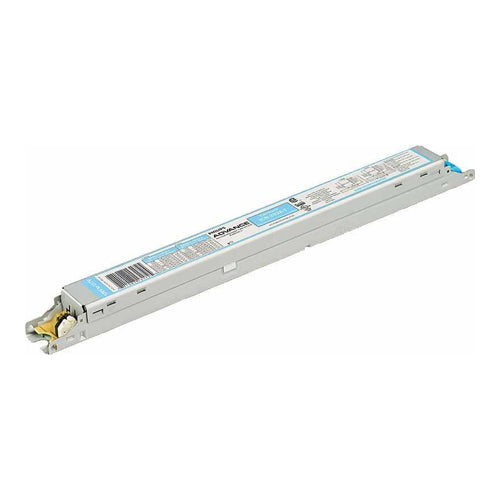

Signify ICN2S28T35I Electronic Fluorescent Ballast 28W (2) F28T5 120-277V

Product Description

Signify ICN2S28T35I is an electronic fluorescent ballast designed for T5 lamps. It supports two lamps with a wattage of twenty-eight watts, operating at voltage ratings from one hundred twenty to two hundred seventy-seven volts. This ballast is suitable for various lighting applications and can handle frequent switching, ensuring a longer lamp life and energy efficiency.

• Compatible with T5 linear lamps
• Includes thermal protection and lamp end-of-life circuitry
• Programmed start ignition for reliability

Product Highlights

The ICN2S28T35I ballast is ideal for lighting fixtures that utilize T5 lamps. Its design enhances flexibility in modern fixture manufacturing while ensuring efficiency and reliability.

Product Information

Standard Information

• Brand: Signify
• MPN: ICN2S28T35I

Technical Specifications

• Application: Lighting luminaire component and outdoor applications
• Wattage: 28 W
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 0.23 to 0.55 A
• Frequency Rating: 50/60 Hz
• Power Factor: 1
• Ballast Factor: 1
• Dimensions: 14.17 in L x 1.18 in W x 1.06 in H
• Material: Metal
• Temperature Range: 70 deg C
• Thermal Protection: Class P
• Total Harmonic Distortion: 10 %
• Start Type: Programmed/Rapid
• Number of Lamps: 2
• Dimmable: No
• Standards/Approvals: UL Listed, CSA Certified
