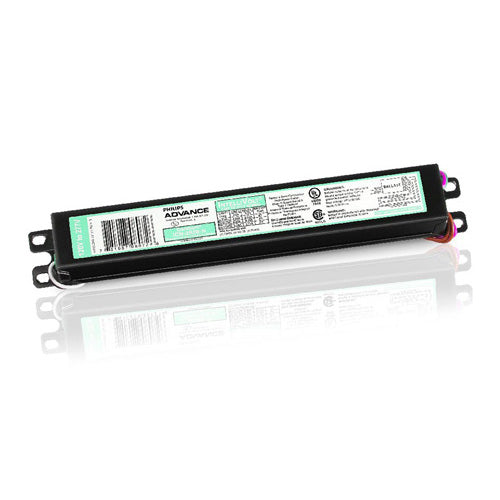

Signify ICN2S24N35M ADV ICN2S24N35M ELE BALLAST (2) F24

Product Description

Signify ICN2S24N35M is an electronic fluorescent ballast designed for T5HO lamps. This ballast operates at a voltage range from one hundred twenty to two hundred seventy-seven volts. It is suitable for applications needing up to two lamps with a maximum wattage of twenty-four watts per lamp.

• Operates with input voltage from one hundred twenty to two hundred seventy-seven volts
• Supports up to two T5HO lamps with a total wattage of twenty-four watts
• Programmed start feature enhances reliability and performance

Product Highlights

The Signify ICN2S24N35M is crafted for dependable fluorescent lighting solutions. Its robust design ensures compatibility with various commercial applications.

Product Information

Standard Information

• Brand: Signify
• Manufacturer Part Number: ICN2S24N35M

Technical Specifications

• Wattage: 24 W
• Voltage Rating: 120 to 277 VAC
• Number of Lamps: 2
• Amperage Rating: 0.15 to 0.45 A
• Frequency Rating: 50/60 Hz
• Ballast Factor: 1
• Temperature Range: 90 deg C
• Minimum Starting Temperature: 0 deg F
• Material: Metal
• Total Harmonic Distortion: 10 %
• Standards/Approvals: CSA Certified, UL Listed
