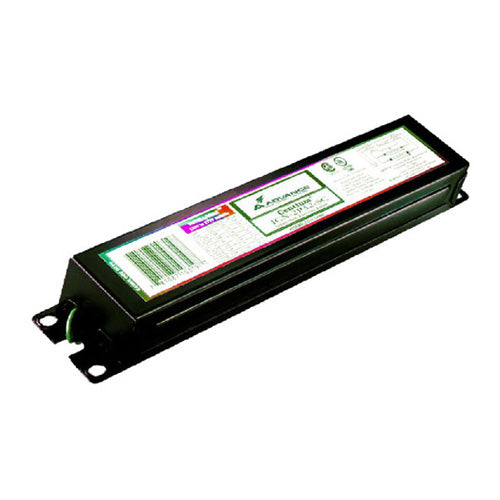

Signify ICN2S110SC35I ADVANCE ELE BALLAST 110W (2) F96T12/HO

Product Description

The Signify ICN2S110SC35I is a Rapid Start Electronic Fluorescent Ballast designed for T12/HO lamps with a wattage of 110W. It operates within a voltage range of 120 to 277 VAC, making it suitable for various electrical systems. The ballast efficiently drives two lamps while maintaining a power factor of 0.9.

• Designed for T12/HO lamps
• Multi-voltage operation from 120 to 277 VAC
• High power factor for energy efficiency

Product Highlights

The ICN2S110SC35I ballast provides reliable operation in diverse conditions, ideal for both indoor and outdoor settings.

Product Information

Standard Information

• Manufacturer: Signify
• Type: Electronic Small Can

Technical Specifications

• Wattage: 191/186 W
• Amperage Rating: 0.7 to 1.64 A
• Voltage Rating: 120 to 277 VAC
• Minimum Starting Temperature: -20 deg F
• Number of Lamps: 2
• Frequency Rating: 50/60 Hz
• Ballast Factor: 0.9
• Total Harmonic Distortion: 10 %
• Temperature Range: 70 deg C
• Material: Metal
• Standards/Approvals: RoHS Compliant, UL Listed, CSA Certified, DOE Certified, CSA-E Certified
