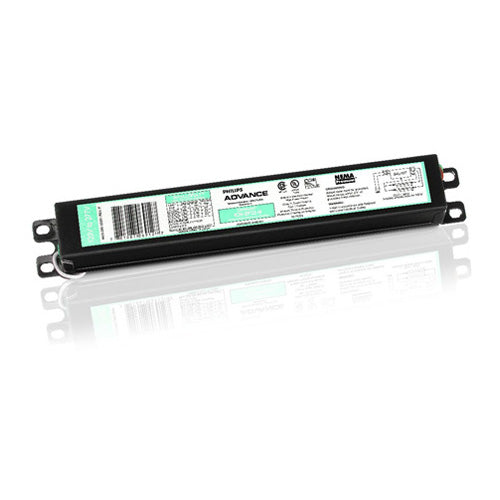

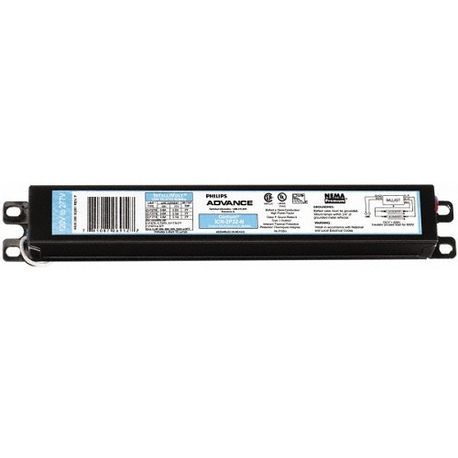

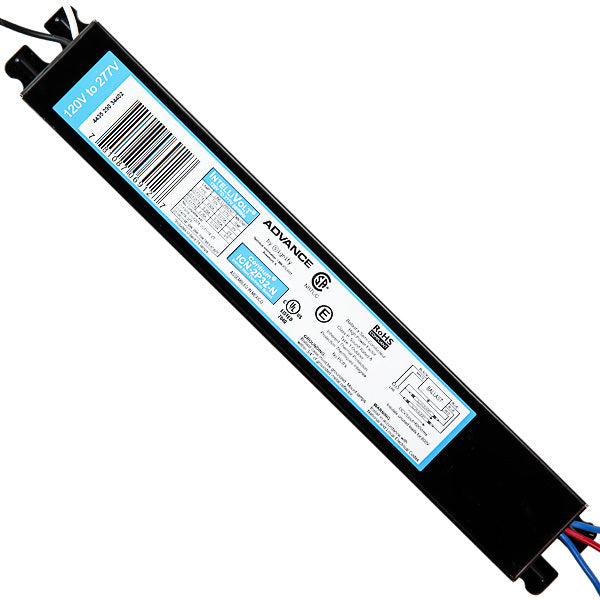

Signify ICN2P32N35I Advance Centium Electronic Fluorescent Ballast 32 W

Product Description

The SIGNIFY ICN2P32N35I Advance Centium electronic ballast is designed for T8 lamps and 32 W lamp wattage. This ballast operates on 120 to 277 VAC and features instant/rapid starting method. It incorporates lamp striation reduction technology and is suitable for outdoor applications.

• Reliable
• Energy efficient
• Commercial grade specifications
• Lamp striation reduction technology

Product Highlights

This electronic ballast is energy efficient and reliable. It is designed for use with T8 lamps and features instant/rapid start.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: ICN2P32N35I
• Country of Origin: US - United States

Technical Specifications

• Lamp Type: T8
• Lamp Wattage: 32 W
• Voltage: 120 to 277 VAC
• Starting Method: Instant/Rapid
• Ballast Factor: 0.89
• Current: 0.22 to 0.49 A
• Frequency: 50/60 Hz
• Minimum Starting Temperature: 0 deg F
• Total Harmonic Distortion: 10 %
• Power Factor: 0.98
• Dimmable: No
• Number of Lamps: 2
• Maximum Case Temperature: 70 deg C
• Material: Metal
• Dimensions: 9.5 in L x 1.3 in W x 1 in H
• Standards/Approvals: CSA Certified|UL Listed
• Start Type: Instant/Rapid
