Signify ICF2S42M2LDK Advance Ele Bal (2) 42W CFL (4-Pin) 120/277V Kit

Product Description

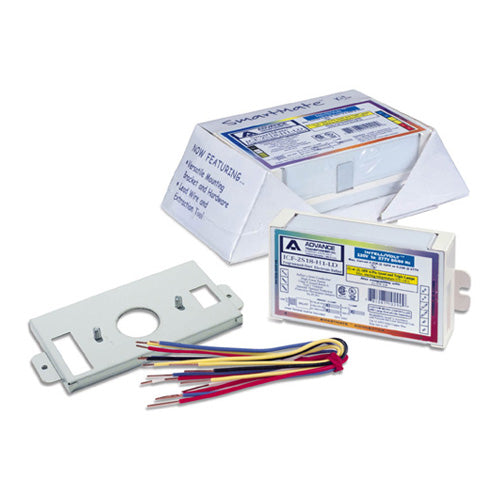

Signify ICF2S42M2LDK is an electronic compact fluorescent ballast designed to efficiently operate two 42 watt CFL lamps. This ballast is ideal for applications requiring reliable lighting with minimal energy consumption.

• Qualified for outdoor applications
• Compatible with GX24Q 4-pin lamp base
• Suitable for a voltage range of 120 to 277 VAC

Product Highlights

This ballast ensures a programmed start for smooth lighting transitions and features a low total harmonic distortion, promoting energy efficiency.

Product Information

Standard Information

• Type: Electronic
• Manufacturer: Signify

Technical Specifications

• Amperage Rating: 0.33 to 0.78 A
• Application: Outdoor Applications
• Ballast Factor: 0.97
• Dimensions: 4.98 in L x 3 in W x 1.29 in H
• Dimmable: Non-Dimmable
• Frequency Rating: 50/60 Hz
• Lamp Base Type: GX24Q 4-Pin
• Lamp Type: CFL
• Lamp Wattage: 42 W
• Manufacturer Part Number: ICF2S42M2LDK
• Material: Metal
• Minimum Starting Temperature: 75 deg C
• Number of Lamps: 2
• Power Factor: 0.98
• Standards/Approvals: UL Listed, CSA Certified, CEC Certified, NOM Certified
• Start Type: Programmed
• Temperature Range: 75 deg C
• Total Harmonic Distortion: 10 %
• Voltage Rating: 120 to 277 VAC
• Wattage: 93 W
