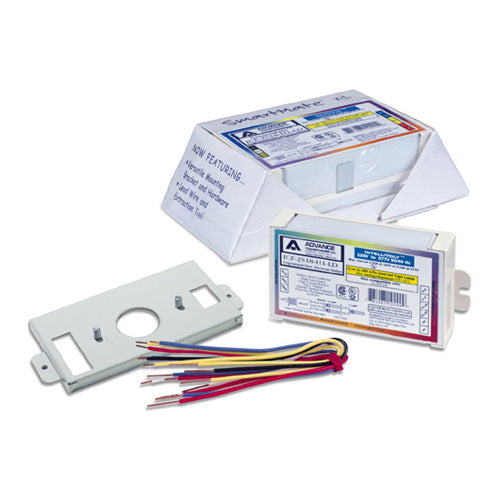

Signify ICF2S18H1LDK Advance Electronic Ballast

Product Description

The Philips Advance ICF2S18H1LDK SmartMate electronic ballast drives a range of 4-pin compact fluorescent lamps. Its energy-efficient design and compact housing make it suitable for fixture manufacturers and MRO replacements. It supports 18 W lamps with a wattage of 35 W and operates at 120 to 277 VAC.

• Energy efficient design
• Compact and lightweight housing
• User-friendly features

Product Highlights

Ideal for fixture manufacturers, retrofitters, and MRO replacements.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: ICF2S18H1LDK

Technical Specifications

• Lamp Type: CFL
• Wattage: 35 W
• Voltage: 120 to 277 VAC
• Current: 0.13 to 0.3 A
• Frequency: 50/60 Hz
• Start Type: Programmed Start
• Total Harmonic Distortion: 10 %
• Power Factor: 0.98
• Number of Lamps: 2 Lamps
• Ballast Factor: 0.95
• Housing Material: Metal/Plastic
• Application: Outdoor Applications
• Lamp Wattage: 18 W
• Manufacturer Part Number: ICF2S18H1LDK
• Material: Metal/Plastic
• Standards/Approvals: UL Listed|CSA Certified|CEC Certified
• Type: Electronic
