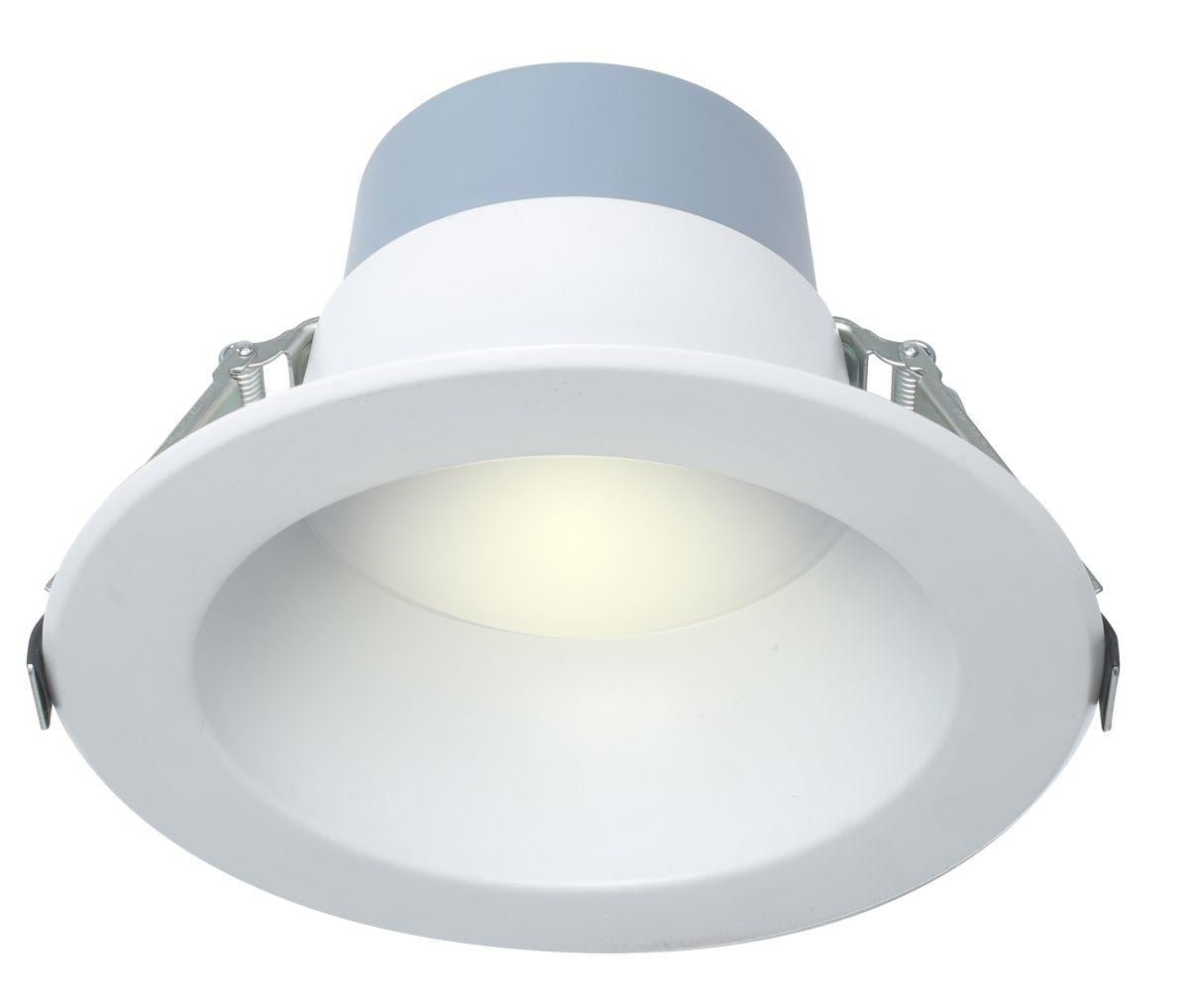

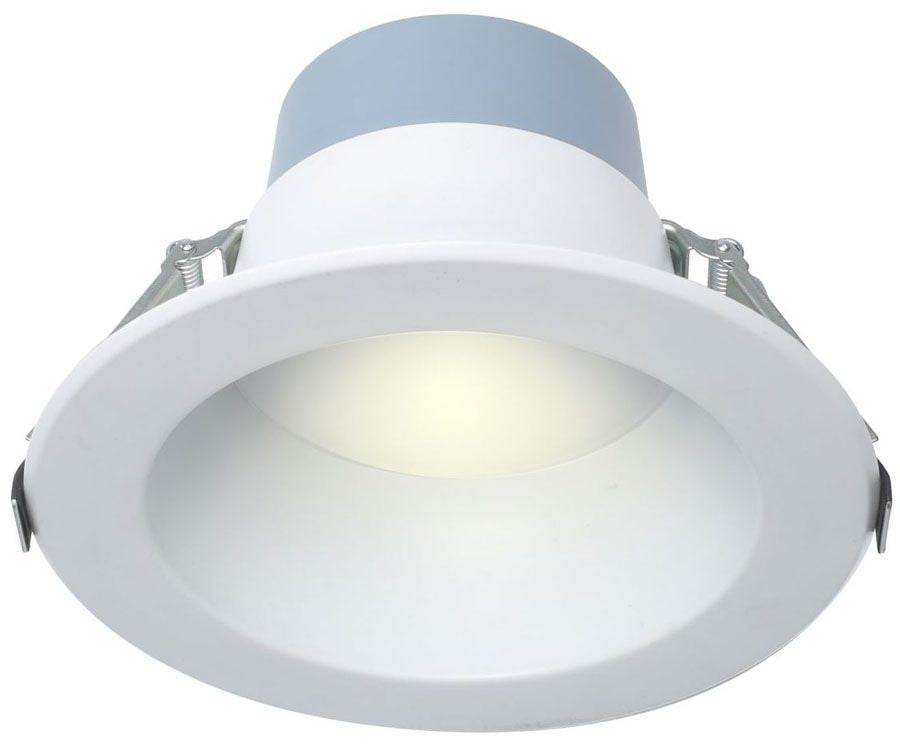

Signify CR6RLMCCT CR Downlight Commercial Retrofit DualSelect, 7, 10, 17 W Fixture, 120 to 347 V

Product Description

The Signify CR6RLMCCT is a versatile downlight fixture designed for commercial retrofit applications. This fixture supports dualSelect functionality, allowing you to choose between three different wattage settings: seven, ten, or seventeen watts. It operates efficiently across a voltage range of one hundred twenty to three hundred forty-seven volts.

• Aluminum construction with a white painted baffle flange.
• Adjustable lumen output settings for customized lighting solutions.
• Quick connect metal conduit with connector included for easy installation.

Product Highlights

The Signify CR6RLMCCT fixture is ideal for retrofitting existing recessed lighting while enhancing energy efficiency and light quality.

Product Information

Standard Information

• Brand: Signify North
• Part Number: N7443

Technical Specifications

• Amperage Rating: 147 to 26 mA
• Average Life: 50,000 hours
• Ballast Type: 0 to 10 V Dimmable
• Color Rendering Index (CRI): 90
• Color Temperature: 3000 K, 3500 K, 4000 K
• Dimensions: 8-1/4 inches Diameter x 5-1/4 inches Height
• Fixture Wattage: 7, 10, 17 W
• Lumens: 700, 1000, 1500 Lumens
• Series: CR
• Type: Downlight
• Voltage Rating: 120 to 347 V
