SIGNIFY 77L6051001D Magnetic HID Ballast Kit

Product Description

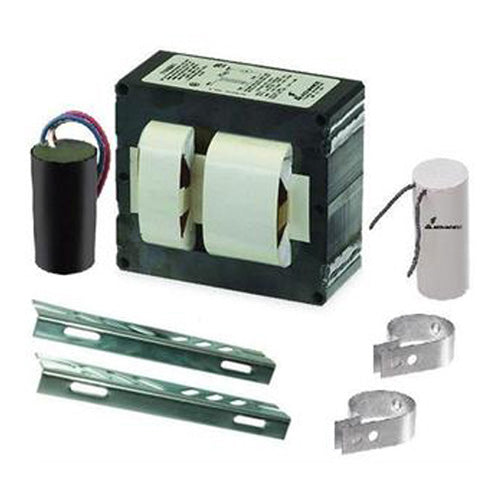

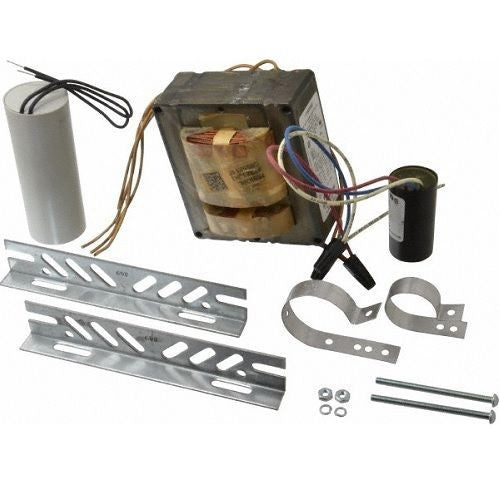

The SIGNIFY Advance 77L6051001D is a magnetic HID ballast kit designed specifically for operating metal halide lamps. This ballast kit initiates and maintains the electrical arc necessary for lamp operation, supporting a range of input voltages: 120, 208, 240, 277, and 480 VAC. The kit includes essential components for installation, such as the core and coil, capacitor, ignitor, mounting bracket, and the necessary hardware.

• Operates one 400W metal halide lamp.
• Probe start type for reliable ignition.
• Multiple input voltage options for versatility: 120/208/240/277/480 VAC.

Product Highlights

This ballast kit is suitable for various lighting applications, particularly in outdoor settings, ensuring effective lamp performance.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer: Signify Electronics

Technical Specifications

• Lamp Type: Metal Halide
• Number of Lamps: 1
• Ballast Type: Magnetic
• Input Voltage: 120/208/240/277/480 VAC
• Lamp Wattage: 400 W
• Power Consumption: 455 W
• Frequency Rating: 60 Hz
• Ballast Factor: 1
• Power Factor: 0.9
• Start Type: Probe
• Thermal Protection: Class P
• Dimmable: No
• Minimum Starting Temperature: -20 degrees F
• Lamp Base Type: 71A6051
• Included Components: Lamp, Core and coil, Capacitor, Ignitor, Mounting Bracket, Hardware, Instructions
• Dimensions: 4.75 in L x 4.45 in W x 4.25 in H
• Amperage Ratings: 4.13/2.29/2.2/1.72/0.99 A
• Standards & Approvals: ULR Listed, CSA Certificate, UL Recognized, UL Insulation Class H, RoHS Compliant, ANSI M59
• Application: Suitable for lighting luminaire components and outdoor use
