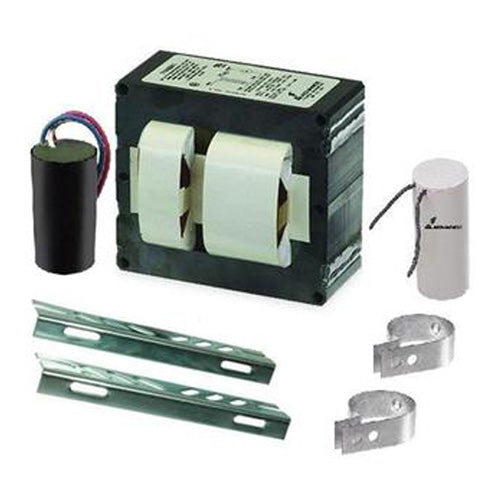

Signify 71A8970001D Philips Advance 120/208/240/277 VAC 200 W High Pressure Sodium Ballast Kit

Product Description

The Signify 71A8970001D is a high pressure sodium ballast kit designed for multiple voltage options including 120, 208, 240, and 277 VAC. This ballast supports efficient operation of HID lamps with a pulse start feature.

• Suitable for high bay retail, manufacturing, and outdoor environments
• Equipped with pre-insulated voltage leads for safety
• Includes a pre-wired ignitor for quick setup

Product Highlights

Designed for reliability and durability, this ballast uses vacuum-pressure impregnation to enhance insulation and performance.

Product Information

Standard Information

• Brand: Signify
• Manufacturer: Advance Transformer

Technical Specifications

• Type: HID Magnetic
• Wattage: 200 Watt
• Voltage Rating: 120/208/240/277 Volt
• Lamp Type: High Pressure Sodium
• Start Type: Pulse
• Ansi Ballast Grade: S66
• Amperage Rating: 2.22/1.28/1.11/0.96 A
• Dimensions: 4-3/4 in L x 3 in W x 4-1/4 in H
• Thermal Protection: Class P
• Minimum Starting Temperature: -40 deg F
