Signify 71A8753001 ADV 1000W HPS 5-TAP BALLAST KIT

Product Description

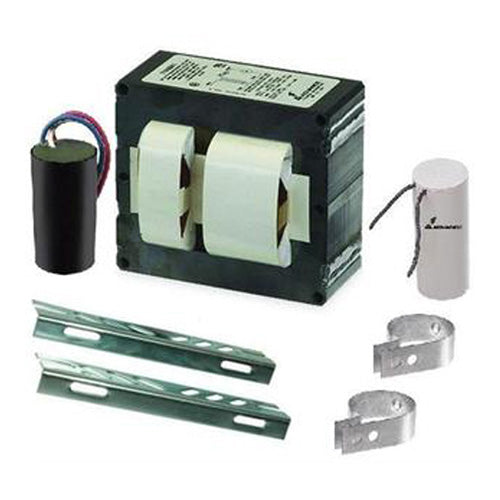

Signify 71A8753001 is a high pressure sodium ballast kit designed for HID magnetic operation. This ballast supports a 1000 watt lamp and features multiple voltage options including 120, 208, 240, 277, and 480 VAC. This ballast is essential for starting and operating high pressure sodium lamps efficiently.

• Power Factor: 1
• Thermal Protection: Class P
• Minimum Starting Temperature: -40 deg F

Product Highlights

The ballast is designed for a single lamp setup and is non-dimmable. It is suitable for both indoor and outdoor lighting applications.

Product Information

Standard Information

• Manufacturer: Signify
• Model Number: 71A8753001

Technical Specifications

• Voltage Rating: 120/208/240/277/480 VAC
• Amperage Rating: 9.28/5.32/4.68/4.03/2.31 A
• Wattage: 1100 W
• Dimensions: 6 in L x 6 in W x 4-1/4 in H
• Lamp Base Type: 71A8753
• Ballast Grade: ANSI S52
• Application: Lighting Luminaire Component and Outdoor Applications
• Number of Lamps: 1
• Start Type: Pulse
• Frequency Rating: 60 Hz
• Standards/Approvals: UL Listed, CSA Certified, UL Recognized, UL Insulation Class H
• Dimmable: No
• Ballast Factor: 1
• Thermal Protection: Class P
• Minimum Starting Temperature: -40 deg F
