Signify 71A8443001D 71A8443-001D ADV 1-S51 400W HPS Ballast 480V

Product Description

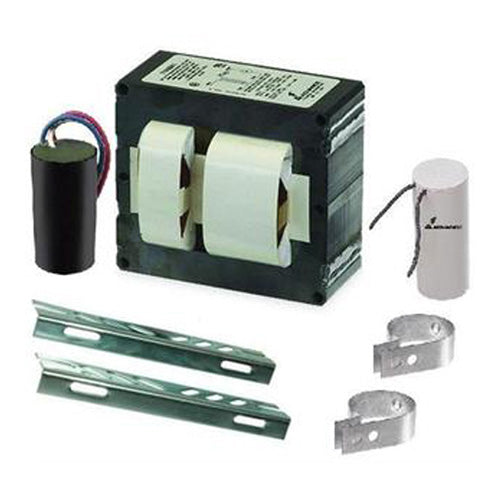

Signify 71A8443001D is an Advance High Pressure Sodium Ballast Kit that is designed for use with high pressure sodium lamps. This ballast operates at four hundred watts and supports a voltage rating of four hundred eighty VAC. It includes necessary components such as a capacitor, igniter, and mounting hardware.

• Core/Coil HID Magnetic design
• Durable for outdoor applications
• Standard for lighting luminaires

Product Highlights

This ballast is ideal for outdoor lighting applications and is characterized by its reliable pulse start capability and strong thermal protection.

Product Information

Standard Information

• Manufacturer: Signify
• UPC: 78108784431

Technical Specifications

• Amperage Rating: 0.97 A
• Application: Lighting Luminaire Component and Outdoor Applications
• Ballast Factor: 1
• Ballast Grade: ANSI S51-M169
• Dimensions: 4.75 in L x 4.3 in W x 4.25 in H
• Dimmable: No
• Frequency Rating: 60 Hz
• Includes: Capacitor, Core and Coil, Igniter, Mounting Bracket and Hardware
• Lamp Type: High Pressure Sodium
• Lamp Wattage: 400 W
• Manufacturer Part Number: 71A8443001D
• Minimum Starting Temperature: -40 deg F
• Number of Lamps: 1
• Power Factor: 1
• Standards/Approvals: EISA Compliant, UL Listed, CSA Certified, UL Recognized
• Start Type: Pulse
• Thermal Protection: Class P
• Type: Core/Coil HID Magnetic
• Voltage Rating: 480 VAC
• Wattage: 464 W
