Signify 71A8271001D Advance 1-S50 250W HPS Ballast

Product Description

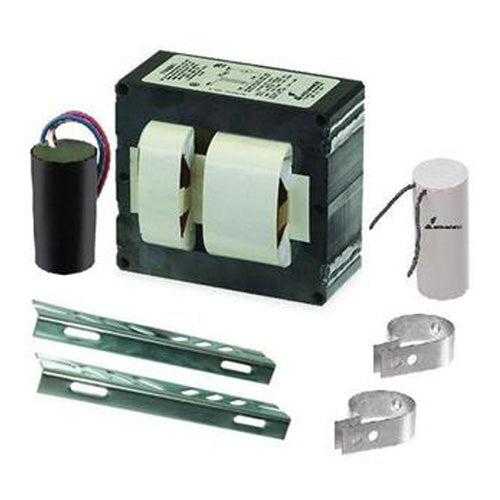

Signify 71A8271001D is an Advance High Pressure Sodium Ballast Kit. This unit is designed to support high pressure sodium lamps with a wattage of two hundred fifty watts. It operates at multiple voltage ratings including one hundred twenty, two hundred eight, two hundred forty, and two hundred seventy-seven VAC. The ballast uses a core and coil design for efficient function.

• Core/coil HID magnetic design
• Includes capacitor, igniter, and mounting hardware
• Suitable for outdoor and lighting luminaires

Product Highlights

This ballast kit features a pulse start design and has a thermal protection class P rating. It performs under a frequency of sixty hertz and offers a power factor of one.

Product Information

Standard Information

• Manufacturer: Signify
• Manufacturer Part Number: 71A8271001D

Technical Specifications

• Ballast Type: Core/Coil HID Magnetic
• Wattage: 295 W
• Voltage Rating: 120/208/240/277 VAC
• Amperage Rating: 2.5/1.47/1.25/1.09 A
• Thermal Protection: Class P
• Minimum Starting Temperature: -40 deg F
• Number of Lamps: 1
• Ballast Grade: ANSI S50
• Frequency Rating: 60 Hz
• Dimmable: No
