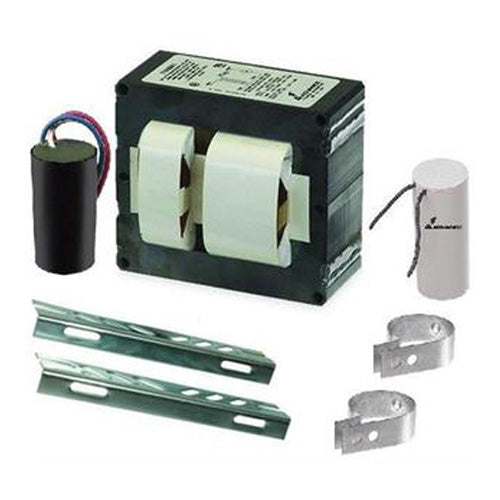

Signify 71A8142001D ADV 1-S55 150W HPS Ballast

Product Description

The Signify 71A8142001D is a Magnetic High Pressure Sodium Ballast designed for use with high pressure sodium lamps. It handles a wattage of 150 W and operates at a voltage of 480 VAC. This ballast is specifically tailored to provide effective power for high-intensity discharge (HID) lighting applications.

• Supports 150 W High Pressure Sodium lamps
• Includes pulse start functionality
• Thermal protection: Class P

Product Highlights

Designed for outdoor and luminaire applications, this ballast ensures reliable performance even under challenging conditions.

Product Information

Standard Information

• Manufacturer: Signify
• Manufacturer Part Number: 71A8142001D

Technical Specifications

• Amperage Rating: 0.42 A
• Application: Lighting Luminaire Component and Outdoor Applications
• Ballast Factor: 1
• Ballast Grade: ANSI S55
• Dimensions: 3.95 in L x 4.3 in W x 2.8 in H
• Dimmable: No
• Frequency Rating: 60 Hz
• Lamp Base Type: 71A8142
• Lamp Type: High Pressure Sodium
• Lamp Wattage: 150 W
• Minimum Starting Temperature: -40 deg F
• Number of Lamps: 1
• Power Factor: 1
• Standards/Approvals: UL Listed|CSA Certified|UL Recognized|UL Insulation Class H
• Start Type: Pulse
• Thermal Protection: Class P
• Type: HID Magnetic
• Voltage Rating: 480 VAC
• Wattage: 118 W
