Signify 71A7971001D Advance 1-S62 70W HPS Ballast

Product Description

The Signify 71A7971001D Advance High Pressure Sodium Ballast Kit is designed for use with a high pressure sodium lamp rated for seventy watts. This core and coil ballast works with multiple voltage ratings including 120, 208, 240, and 277 VAC. The ballast is suitable for outdoor applications as well as typical lighting fixtures.

• Compatible with high pressure sodium lamps
• Designed for multiple voltage inputs
• Features thermal protection and ANSI S62 ballast grade

Product Highlights

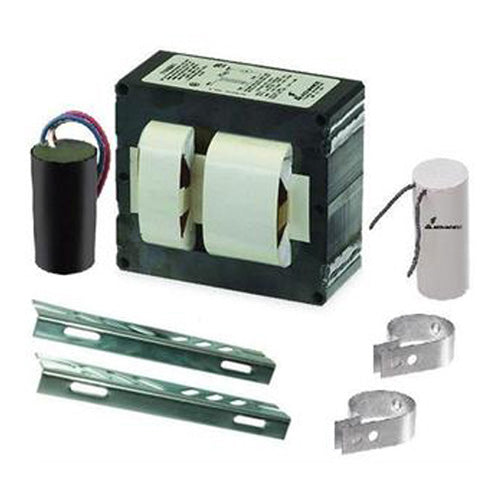

This ballast kit includes the core, coil, igniter, and mounting hardware, providing a complete solution for your lighting needs.

Product Information

Standard Information

• Manufacturer: Signify
• UPC: 78108779711

Technical Specifications

• Amperage Rating: 0.81/0.47/0.4/0.35 A
• Application: Lighting luminaire component and outdoor applications
• Ballast Factor: 1
• Dimensions: 4 in L x 2.9 in W x 2.9 in H
• Dimmable: No
• Frequency Rating: 60 Hz
• Includes: Capacitor, core and coil, igniter, mounting bracket and hardware
• Lamp Type: High pressure sodium
• Lamp Wattage: 70 W
• Minimum Starting Temperature: -40 deg F
• Power Factor: 1
• Standards/Approvals: EISA Compliant, UL Listed, CSA Certified, UL Recognized
• Voltage Rating: 120/208/240/277 VAC
• Wattage: 96 W
