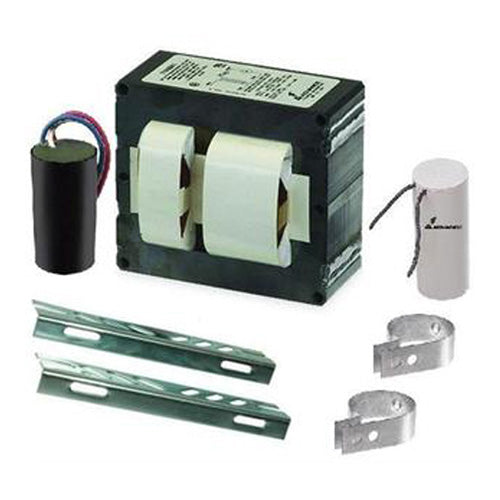

Signify 71A6772001 71A6772-001 ADV 1500W MT HID Ballast Core and Coil

Product Description

The Signify 71A6772001 is an advance magnetic HID ballast designed for HID metal halide lamps. This ballast operates with a lamp wattage of fifteen hundred watts and is compatible with various voltage ratings including one hundred twenty, two hundred eight, two hundred forty, and two hundred seventy-seven VAC.

• Supports metal halide lamps
• Probe start technology
• Class P thermal protection

Product Highlights

This product ensures reliable operation for outdoor lighting applications.

Product Information

Standard Information

• Manufacturer: Signify
• UPC: 78108767721

Technical Specifications

• Amperage Rating: 13.4/7.8/6.8/5.9 A
• Application: Lighting Luminaire Component and Outdoor Applications
• Ballast Factor: 1
• Ballast Grade: ANSI M48
• Dimensions: 6 in L x 6.7 in W x 4.25 in H
• Dimmable: No
• Frequency Rating: 60 Hz
• Lamp Base Type: 71A6772
• Lamp Type: HID Metal Halide
• Lamp Wattage: 1500 W
• Manufacturer Part Number: 71A6772001
• Minimum Starting Temperature: -20 deg F
• Number of Lamps: 1
• Power Factor: 0.9
• Standards/Approvals: CSA Certified, UL Recognized, UL Insulation Class H
• Start Type: Probe
• Thermal Protection: Class P
• Type: Magnetic
• Voltage Rating: 120/208/240/277 VAC
• Wattage: 1610 W
