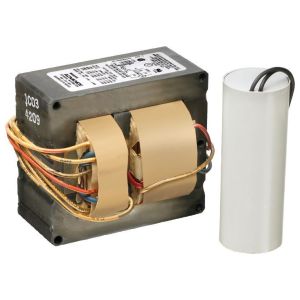

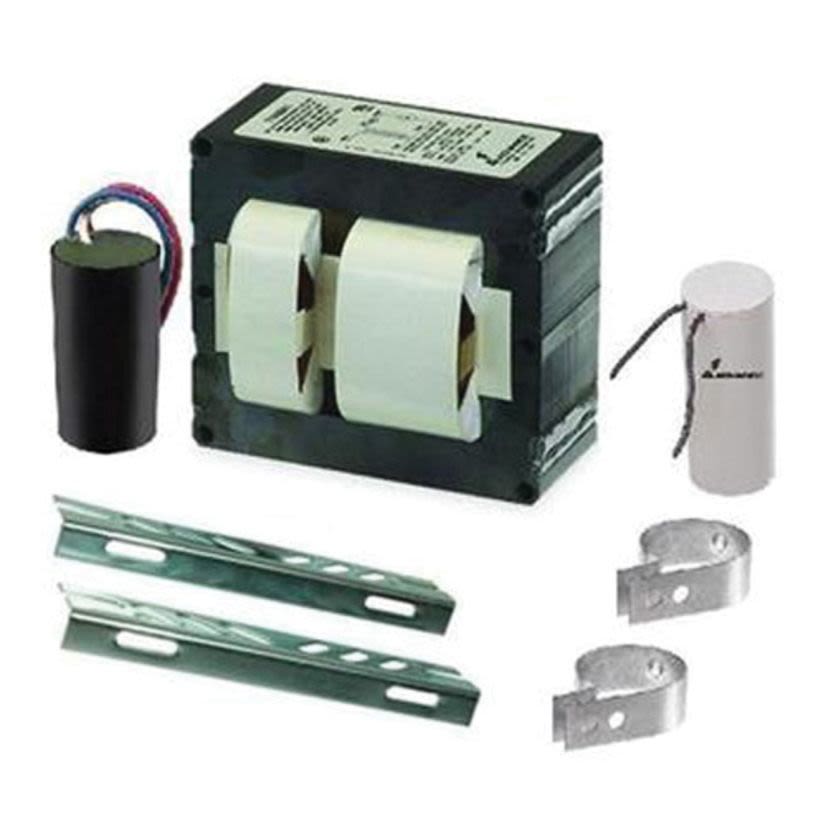

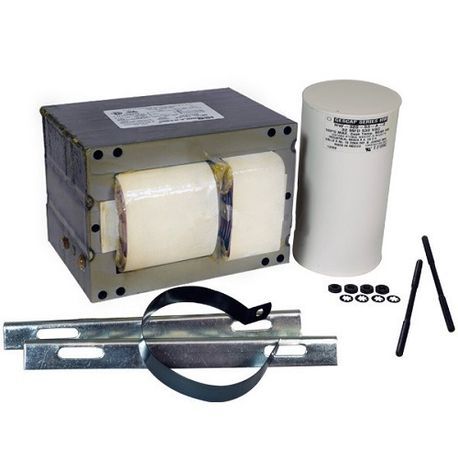

Signify 71A6071001D Advance Magnetic HID Ballast Metal Halide Lamp 400 W

Product Description

The Signify 71A6071001D Advance magnetic HID ballast operates a variety of metal halide, high pressure sodium, and low pressure sodium lamps. The ballast provides the correct starting and operating voltage and current to initiate and sustain the arc. It is designed for replacement and retrofit needs.

• Operates metal halide, high pressure sodium and low pressure sodium lamps
• Provides proper starting and operating voltage and current
• Quadri-Volt core and coil ballasts for replacement and retrofit needs

Product Highlights

This magnetic ballast is suitable for lighting luminaire components and outdoor applications. It features thermal protection and is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: 71A6071001D
• Country of Origin: Mexico

Technical Specifications

• Lamp Type: HID Metal Halide
• Wattage: 455 W
• Voltage Rating: 120/208/240/277 VAC
• Ballast Type: Magnetic
• Ballast Factor: 1
• Amperage Rating: 4/2.3/2/1.72 A
• Application: Lighting Luminaire Component and Outdoor Applications
• Ballast Grade: ANSI M59
• Dimmable: No
• Frequency Rating: 60 Hz
• Manufacturer Part Number: 71A6071001D
• Minimum Starting Temperature: -20 deg F
• Number of Lamps: 1
• Power Factor: 0.9
• Standards/Approvals: RoHS Compliant|UL Listed|CSA Certified|UL Recognized|UL Insulation Class H
• Start Type: Probe
• Thermal Protection: Class P
• Ballast Input Voltage: 120/208/240/277 V
• Ballast Circuit Type: CWA
• Ballast Technology: Magnetic Core and Coil
• Lamp Watts: 400W
• Input Current: 1.72 A
• Input Wattage: 455 W
• Wire Type: Stranded
• Circuit: CWA
• Min Temp - deg F: -20°F (-29°C)
