Signify 71A5892001D ADV 320 Watt M.H. Pulse Ballast

Product Description

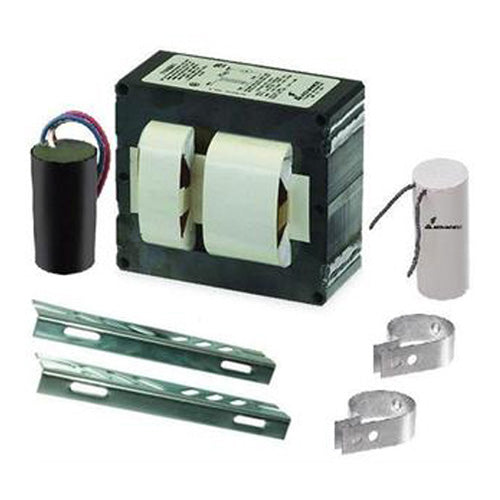

The Signify 71A5892001D is a magnetic HID ballast designed for HID metal halide lamps with a power rating of 320 Watts. This ballast operates on various voltages, specifically 120, 208, 240, and 277 VAC, making it versatile for different lighting needs. It supports up to one lamp with a ballast factor of one.

• Compatible with HID metal halide lamps.
• Supports multiple voltage options: 120, 208, 240, and 277 VAC.
• Features thermal protection with a class P rating.

Product Highlights

Suitable for use in lighting luminaires and outdoor applications, this ballast provides essential starting and operating requirements for efficient lamp performance.

Product Information

Standard Information

• Manufacturer: Signify
• UPC: 78108709617

Technical Specifications

• Amperage Rating: 3.25/1.9/1.65/1.4 A
• Application: Lighting Luminaire Component and Outdoor Applications
• Ballast Factor: 1
• Ballast Grade: ANSI M132/M154
• Dimensions: 4.75 in L x 3.65 in W x 4.25 in H
• Dimmable: No
• Frequency Rating: 60 Hz
• Lamp Base Type: 71A5892A
• Lamp Type: HID Metal Halide
• Lamp Wattage: 320 W
• Minimum Starting Temperature: -20 deg F
• Number of Lamps: 1
• Power Factor: 0.9
• Standards/Approvals: RoHS Compliant, UL Listed, CSA Certified, UL Recognized, UL Insulation Class H, BAA Compliant, NoM Certified
• Start Type: Pulse
• Thermal Protection: Class P
• Type: Magnetic
• Voltage Rating: 120/208/240/277 VAC
• Wattage: 368 W
