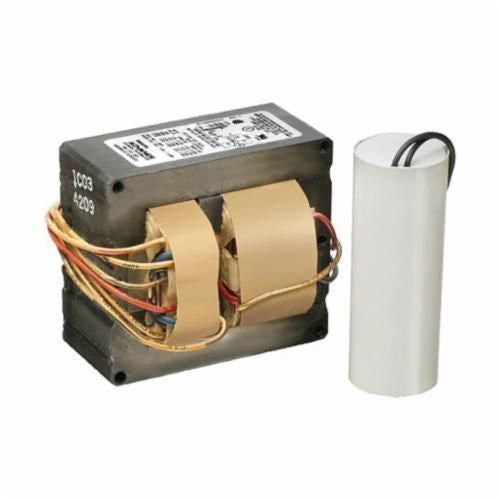

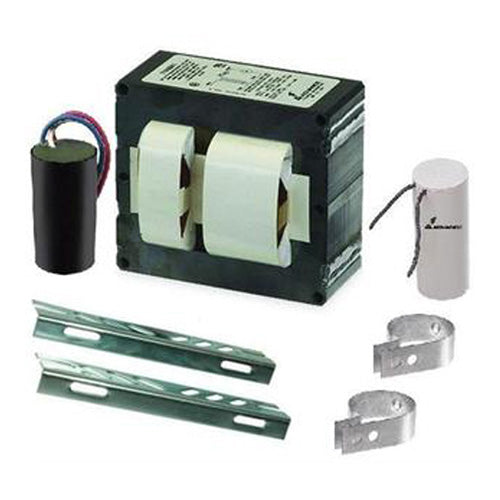

Signify 71A5792001D Advance Magnetic HID Ballast, HID Metal Halide Lamp, 250 W Lamp, 120/208/240/277 VAC, Pulse, 1 Ballast Factor

Product Description

The SIGNIFY 71A5792001D Advance Magnetic HID Ballast is designed for HID Metal Halide Lamps, operating a 250 W lamp with a voltage of 120/208/240/277 VAC and a ballast factor of 1. This magnetic ballast is suitable for lighting luminaire components and outdoor applications. It features pulse start and class P thermal protection.

• Operates HID Metal Halide lamps
• Suitable for lighting luminaire components and outdoor applications
• Features pulse start and Class P thermal protection

Product Highlights

This magnetic ballast ensures reliable performance for metal halide lamps in various applications.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: 71A5792001D
• Country of Origin: USA

Technical Specifications

• Lamp Type: HID Metal Halide Lamp
• Wattage: 291 W
• Voltage Rating: 120/208/240/277 VAC
• Ballast Factor: 1
• Amperage Rating: 2.5/1.45/1.25/1.1 A
• Application: Lighting Luminaire Component and Outdoor Applications
• Dimmable: No
• Frequency Rating: 60 Hz
• Manufacturer Part Number: 71A5792001D
• Minimum Starting Temperature: -30 deg F
• Number of Lamps: 1
• Power Factor: 0.9
• Standards/Approvals: RoHS Compliant|UL Listed|CSA Certified|UL Recognized|UL Insulation Class H
• Start Type: Pulse
• Thermal Protection: Class P
• Type: Magnetic
• Ballast Grade: ANSI M138/M153
• Input Current: 1.1 A
• Input Wattage: 291 W
• Wire Type: Stranded
• Brand: Advance
• MPN: 71A5792001D
