Signify 71A5771001D Advance Magnetic HID Ballast, HID Metal Halide Lamp, 250 W Lamp, 120/208/240/277 VAC, Probe, 1 Ballast Factor

Product Description

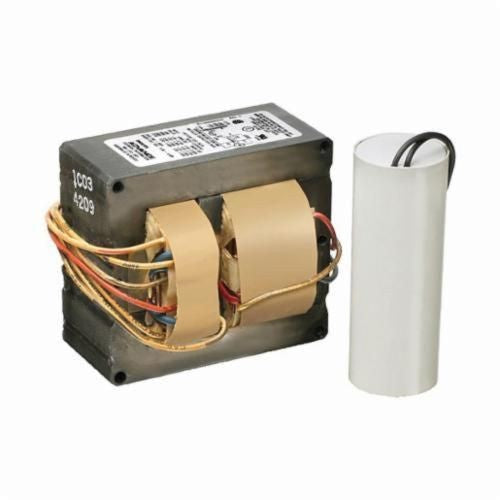

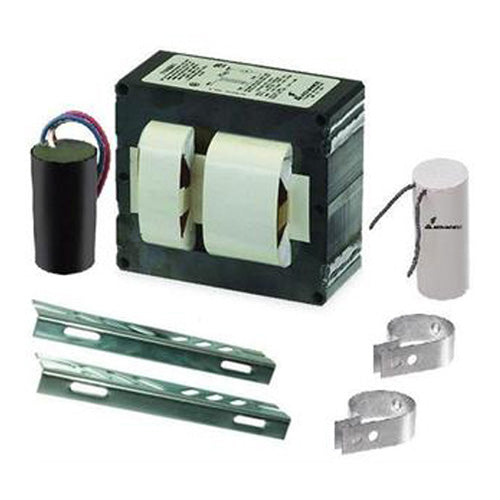

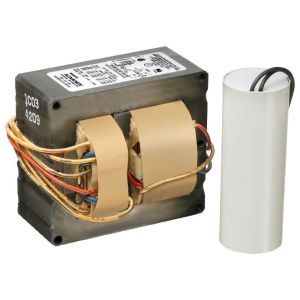

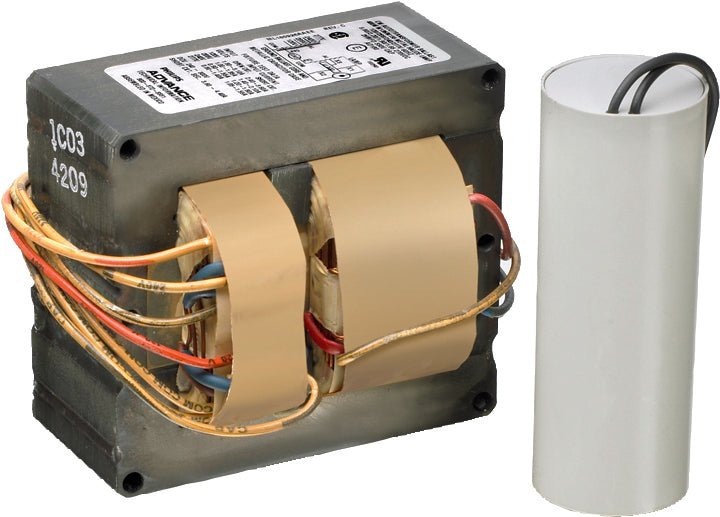

The Signify 71A5771001D Advance magnetic HID ballast operates a wide variety of metal halide lamps. This ballast provides the proper starting and operating voltage and current to initiate and sustain the arc. It supports 250 W metal halide lamps and operates at 120/208/240/277 VAC. It is designed for use as a component within a lighting luminaire.

• Operates 250 W metal halide lamps
• Input voltage: 120/208/240/277 VAC
• Features a probe start type

Product Highlights

This magnetic ballast is designed for HID metal halide lamps and is suitable for lighting luminaire components and outdoor applications.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: 71A5771001D
• Country of Origin: US - United States

Technical Specifications

• Lamp Type: HID Metal Halide
• Lamp Wattage: 250 W
• Voltage: 120/208/240/277 VAC
• Ballast Type: Magnetic
• Ballast Factor: 1
• Wattage: 294 W
• Dimmable: No
• Start Type: Probe
• Application: Lighting Luminaire Component and Outdoor Applications
• Power Factor: 0.9
• Ballast Grade: ANSI M58
• Amperage Rating: 2.6/1.5/1.3/1.1 A
• Number of Lamps: 1
• Frequency Rating: 60 Hz
• Thermal Protection: Class P
• Standards/Approvals: RoHS Compliant|UL Listed|CSA Certified|UL Recognized|UL Insulation Class H
• Manufacturer Part Number: 71A5771001D
• Minimum Starting Temperature: -20 deg F
• Ballast Circuit Type: CWA
• Ballast Technology: Magnetic Core and Coil
• Ballast Input Voltage: 120/208/240/277 V
• Input Current: 1.1 A
• Input Wattage: 294 W
• Wire Type: Stranded
• Brand: Advance
• Height: 2.81 Inch
• Length: 3.94 Inch
• Width: 4.200 in
