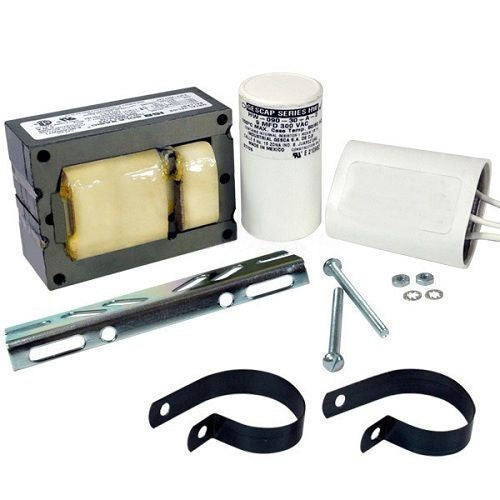

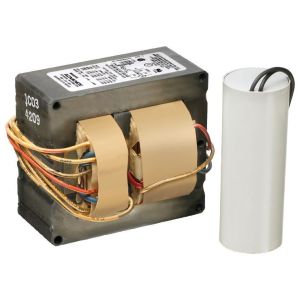

Signify 71A5770001D Advance Magnetic HID Ballast, HID Metal Halide Lamp, 250 W Lamp, 120/208/240/277 VAC, Probe, 1 Ballast Factor

Product Description

The Signify 71A5770001D is an Advance magnetic HID ballast designed for HID metal halide lamps. It supports a 250 W lamp with a voltage of 120/208/240/277 VAC and features a probe start with a ballast factor of 1. This ballast provides the correct starting and operating voltage and current to initiate and sustain the arc. It is suitable for lighting luminaire components and outdoor applications.

• Operates HID metal halide lamps
• Provides proper starting and operating voltage and current
• Features a Quadri-Volt core and coil

Product Highlights

This magnetic HID ballast is designed for metal halide lamps, providing reliable operation with multiple voltage options.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: 71A5770001D
• Country of Origin: US - United States

Technical Specifications

• Lamp Type: HID Metal Halide
• Lamp Wattage: 250 W
• Voltage Rating: 120/208/240/277 VAC
• Ballast Type: Magnetic HID
• Ballast Factor: 1
• Amperage Rating: 2.5/1.45/1.25/1.1 A
• Dimensions: 4.75 in L x 3.15 in W x 4.25 in H
• Dimmable: No
• Frequency Rating: 60 Hz
• Number of Lamps: 1
• Power Factor: 0.9
• Start Type: Probe
• Thermal Protection: Class P
• Wattage: 298 W
• Minimum Starting Temperature: -20 deg F
• Ballast Grade: ANSI M58
• Application: Lighting Luminaire Component and Outdoor Applications
• Standards/Approvals: RoHS Compliant|UL Listed|CSA Certified|UL Recognized|UL Insulation Class H
• Ballast Circuit Type: CWA
• Ballast Technology: Magnetic Core and Coil
