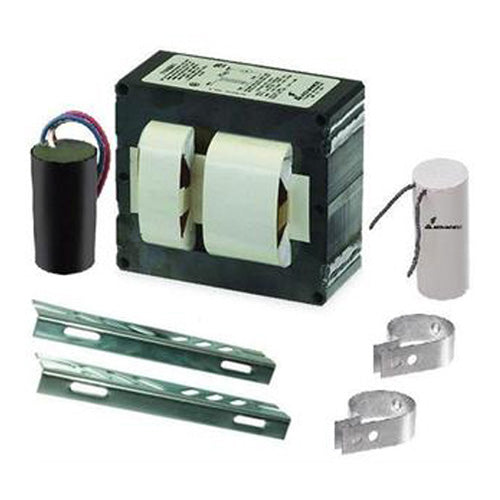

Signify 71A5750001D 250W MH 5-TAP Ballast Kit

Product Description

Signify 71A5750001D is a magnetic HID ballast designed for use with HID metal halide lamps. This ballast operates at 250 watts and is compatible with multiple input voltages including 120, 208, 240, 277, and 480 VAC.

• Operates HID Metal Halide lamps at 250 watts
• Features a 5-TAP design for versatile voltage input
• Includes thermal protection for safe operation

Product Highlights

This magnetic ballast is ideal for lighting applications where HID lamps are required. It supports a wide range of operating conditions and ensures reliable starting and operation of the lamps.

Product Information

Standard Information

• Manufacturer: Signify
• MPN: 71A5750001D

Technical Specifications

• Type: Magnetic
• Wattage: 250 W
• Voltage Rating: 120/208/240/277/480 VAC
• Amperage Rating: 2.6/1.5/1.4/1.1/0.65 A
• Frequency Rating: 60 Hz
• Minimum Starting Temperature: -20 deg F
• Power Factor: 0.9
• Ballast Factor: 1
• Thermal Protection: Class P
• Lamp Base Type: 71A5750
• Number of Lamps: 1
• Standards/Approvals: RoHS Compliant, UL Listed, CSA Certified, UL Recognized, UL Insulation Class H
