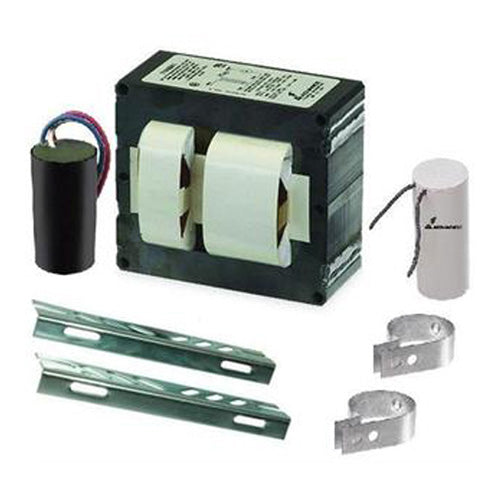

Signify 71A5492001D Advance MH Bal 150W Quad Kit

Product Description

The Signify 71A5492001D is a Magnetic HID Ballast designed for HID Metal Halide lamps. It operates a 150 W lamp with a versatility of input voltages ranging from 120 to 277 VAC. This ballast features a pulse start and provides reliable performance in outdoor and luminaire applications.

• Input Voltage: 120/208/240/277 VAC
• Amperage Rating: 1.6/0.96/0.8/0.7 A
• Dimensions: 4 inches long x 3.9 inches wide x 2.9 inches high

Product Highlights

The Signify ballast is ideal for high-pressure sodium and low-pressure sodium lamps, offering thermal protection and a ballast factor of 1.

Product Information

Standard Information

• Manufacturer: Signify
• UPC: 78108705324

Technical Specifications

• Amperage Rating: 1.6/0.96/0.8/0.7 A
• Application: Lighting Luminaire Component and Outdoor Applications
• Ballast Factor: 1
• Ballast Grade: ANSI M102/M142
• Dimensions: 4 inches long x 3.9 inches wide x 2.9 inches high
• Dimmable: No
• Frequency Rating: 60 Hz
• Lamp Base Type: 71A5492
• Lamp Type: HID Metal Halide
• Lamp Wattage: 150 W
• Manufacturer Part Number: 71A5492001D
• Minimum Starting Temperature: -20 degrees Fahrenheit
• Number of Lamps: 1
• Power Factor: 0.9
• Standards/Approvals: RoHS Compliant, UL Listed, CSA Certified
• Start Type: Pulse
• Thermal Protection: Class P
• Type: Magnetic
• Voltage Rating: 120/208/240/277 VAC
• Wattage: 185 W
