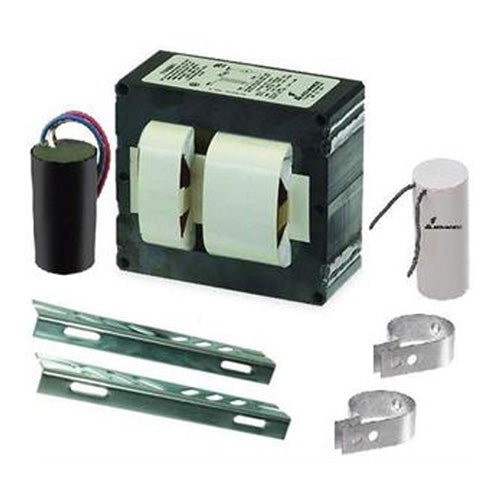

Signify 71A5390001D ADV 100W MH Quad Tap Ballast

Product Description

The Signify 71A5390001D is a magnetic HID ballast designed for 100 watt metal halide lamps. It supports multiple voltage inputs including 120, 208, 240, and 277 VAC. This ballast is suitable for various lighting applications where metal halide lighting is needed.

• Magnetic ballast for metal halide lamps
• Supports 120/208/240/277 VAC
• Includes thermal protection features

Product Highlights

This ballast is ideal for outdoor applications and lighting luminaires.

Product Information

Standard Information

• Manufacturer: Signify
• UPC: 78108701783

Technical Specifications

• Type: Magnetic
• Application: Lighting Luminaire Component and Outdoor Applications
• Lamp Type: HID Metal Halide
• Lamp Wattage: 100 W
• Amperage Rating: 1.15/0.66/0.58/0.5 A
• Power Factor: 0.9
• Voltage Rating: 120/208/240/277 VAC
• Frequency Rating: 60 Hz
• Ballast Factor: 1
• Ballast Grade: ANSI M90/M140
• Minimum Starting Temperature: -20 deg F
• Dimensions: 4 in L x 3.07 in W x 2.9 in H
• Thermal Protection: Class P
• Standards/Approvals: RoHS Compliant, UL Listed, CSA Certified, UL Recognized, UL Insulation Class H
