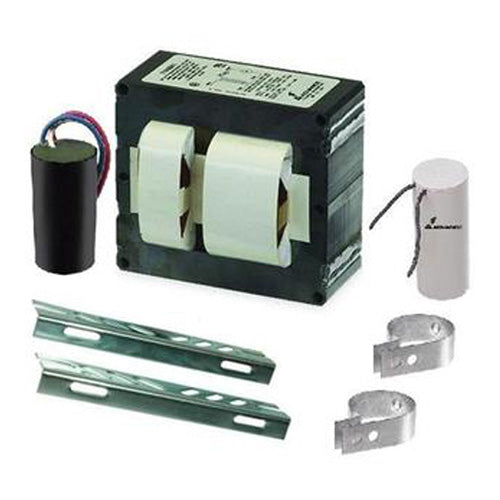

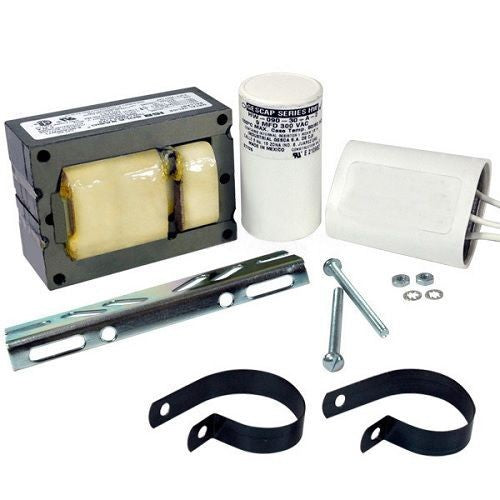

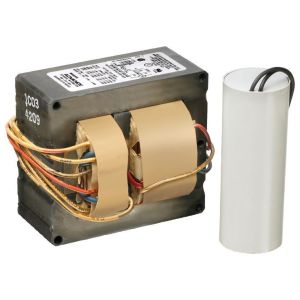

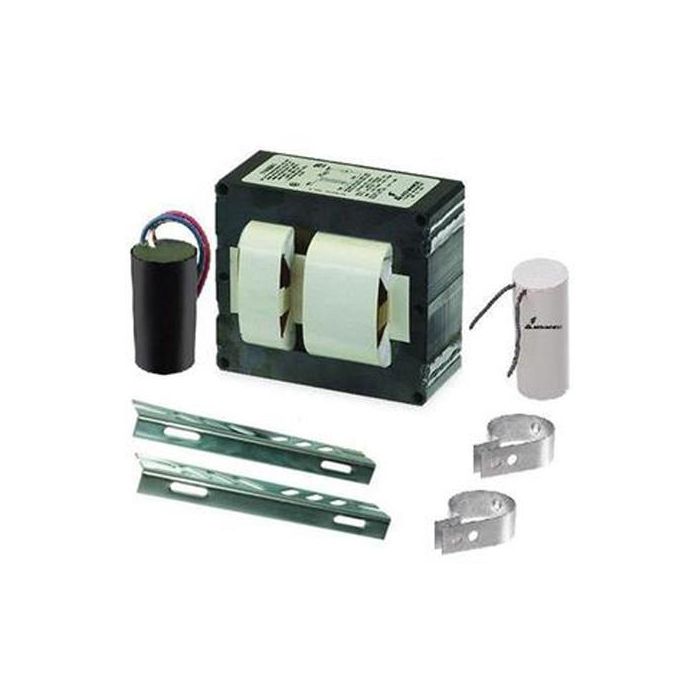

Signify 71A5292001D Advance Magnetic HID Ballast, HID Metal Halide Lamp, 70 W Lamp, 120/208/240/277 VAC, Pulse, 1 Ballast Factor

Product Description

The Signify 71A5292001D Advance Magnetic HID Ballast is designed for HID Metal Halide Lamps, operating a 70 W lamp at 120/208/240/277 VAC. This pulse start ballast has a ballast factor of 1. It provides the correct starting and operating voltage and current to initiate and sustain the arc. It is suitable for lighting luminaire components and outdoor applications.

• Operates metal halide, high pressure sodium, and low pressure sodium lamps
• Provides proper starting and operating voltage and current
• Quadri-Volt core and coil ballasts

Product Highlights

This magnetic HID ballast is designed to operate metal halide lamps, providing the necessary voltage and current for stable operation.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: 71A5292001D
• Country of Origin: Mexico

Technical Specifications

• Lamp Type: HID Metal Halide
• Voltage: 120/208/240/277 VAC
• Ballast Type: Magnetic HID
• Ballast Factor: 1
• Amperage: 0.85/0.49/0.42/0.37 A
• Frequency: 60 Hz
• Starting Type: Pulse Start
• Minimum Starting Temperature: -20 deg F
• Power Factor: 0.9
• Dimmable: No Dimmable
• Number of Lamps: 1 Lamp
• Thermal Protection: Class P
• Ballast Grade: ANSI M98/M143
• Application: Lighting Luminaire Component and Outdoor Applications
• Lamp Wattage: 70 W
• Start Type: Pulse
• Type: Magnetic
• Standards/Approvals: RoHS Compliant|UL Listed|CSA Certified|UL Recognized|UL Insulation Class H
• Ballast Input Voltage: 120/208/240/277 V
• Ballast Circuit Type: HX-HPF
• Ballast Technology: Magnetic Core and Coil
• Lamp Watts: 70W
• Manufacturer: Signify
