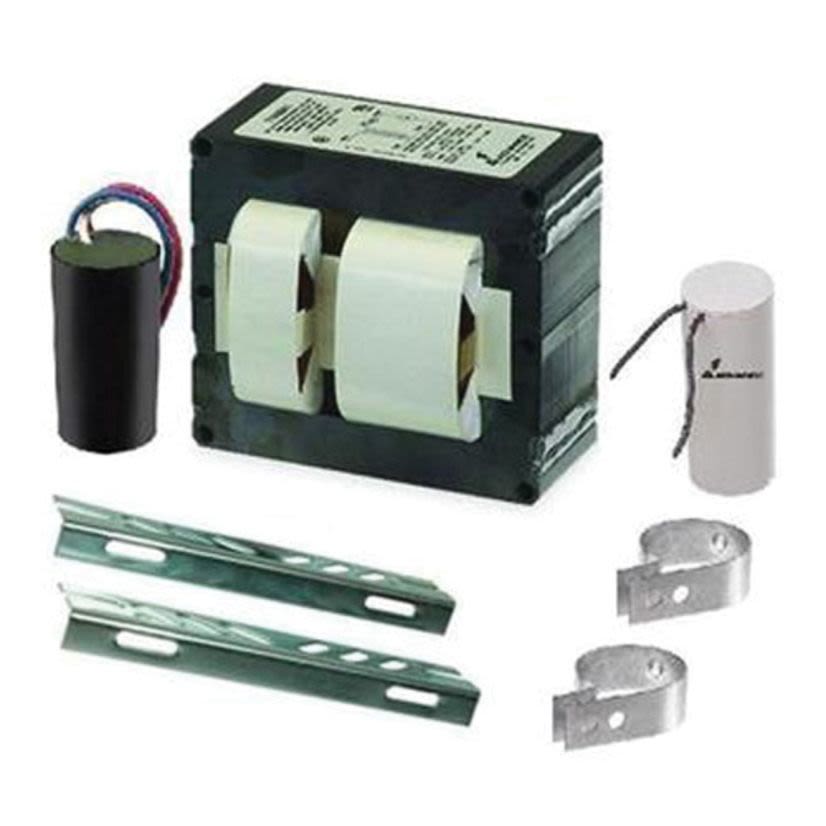

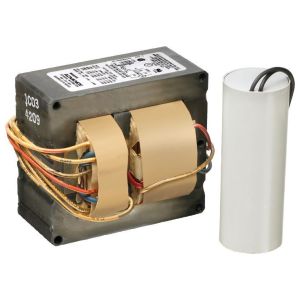

Signify 71A5181001D Ballast, Magnetic, Metal Halide, HX-HPF, 120/277V Input, 50W, 1 Lamp

Product Description

The SIGNIFY 71A5181001D is a magnetic HID ballast designed for metal halide lamps. This ballast operates with an input voltage of 120/277V and supports a 50W lamp. It is commonly used as a component within lighting luminaires. The ballast features a HX-HPF circuit type and is suitable for various lighting applications requiring metal halide lamps.

• Features a magnetic ballast technology.
• Designed for metal halide lamps with a wattage of 50W.
• Operates on a 120/277V input voltage.

Product Highlights

This magnetic ballast is ideal for lighting fixtures using metal halide lamps, providing reliable operation and consistent performance.

Product Information

Standard Information

• Brand: SIGNIFY
• Manufacturer Part Number: 71A5181001D
• Country of Origin: MX - Mexico

Technical Specifications

• UPC: 78108705602
• UNSPSC: 39101902
• Ballast Input Voltage: 120/277 V
• Ballast Circuit Type: HX-HPF
• Ballast Technology: Magnetic
• Lamp Type: Metal Halide
• Lamp Watts: 50 W
• Number of Lamps: 1
• Amperage Rating: 0.58/0.25 A
• Ballast Factor: 1
• Ballast Grade: ANSI M110/M148
• Dimmable: No
• Frequency Rating: 60 Hz
• Wattage: 67 W
• Manufacturer: Signify
• Power Factor: 0.9
• Start Type: Pulse
• Thermal Protection: Class P
• Type: Magnetic
• Voltage Rating: 120/277 VAC
