Signify 287284 OT160ET3 ABB 3P SW,125A/600V,DOOR MNT 1SCA022350R1960

Product Description

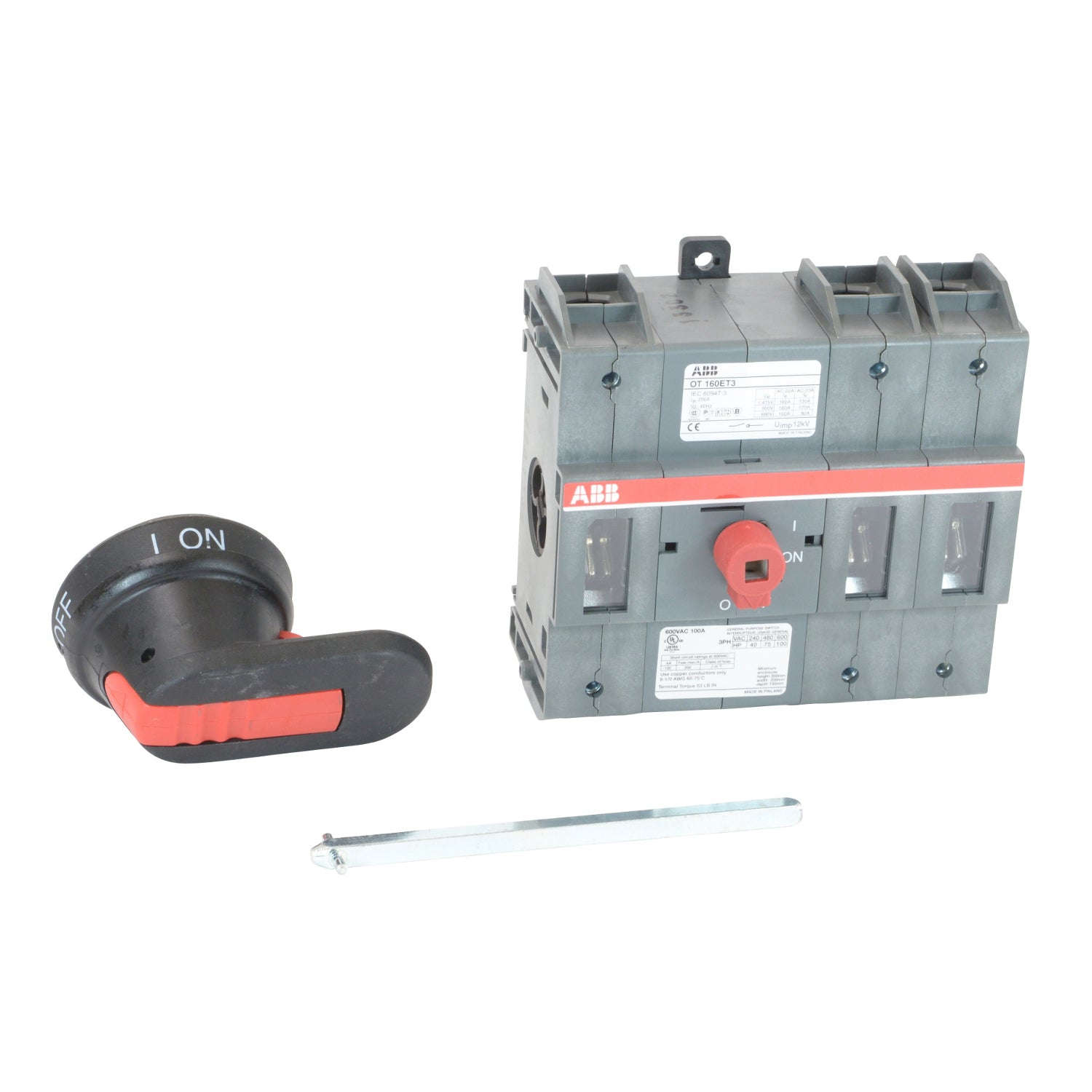

The Signify OT160ET3 is a non-fusible disconnect switch from ABB. It has a voltage rating of six hundred volts and an amperage rating of one hundred twenty-five amps. This switch is designed for door mounting and is suitable for various applications, including as a motor disconnect and industrial control panel disconnect.

• Non-fusible construction
• Rated for three poles
• Handles can be padlocked in the OFF position

Product Highlights

The OT Series switches feature modular construction and a quick make, quick brake mechanism, ensuring reliable performance.

Product Information

Standard Information

• Manufacturer: Signify
• MPN: 287284

Technical Specifications

• Type: Non-Fusible
• Voltage Rating: 600 VAC
• Amperage Rating: 125 A
• Horsepower: 100 hp
• Frequency Rating: 50/60 Hz
• Number of Poles: 3
• Mounting Type: Door
• Temperature Rating: 40 deg C
• Dimensions: 131 mm H x 127 mm W x 90 mm D
• Standards/Approvals: UL 98|CSA C22.2 No. 4|IEC 60947-1/60947-3|RoHS Compliant
• Application: Suitable for motor disconnects and industrial control panels
• Includes: Handle and 130 mm L Shaft
• Terminal Type: Lug
