SIGNAMAX Signamax 48458MDX-C6 MDX-Series Unscreened Patch Panel 48-Port
SIGNAMAX Signamax 48458MDX-C6 MDX-Series Unscreened Patch Panel 48-Port

Signamax 48458MDX-C6 MDX-Series Unscreened Patch Panel 48-Port

Brand: SIGNAMAX
SKU: 48458MDX-C6C
Availability: In Stock

Ships same day if ordered by 12 pm
$280.09
$280.09
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

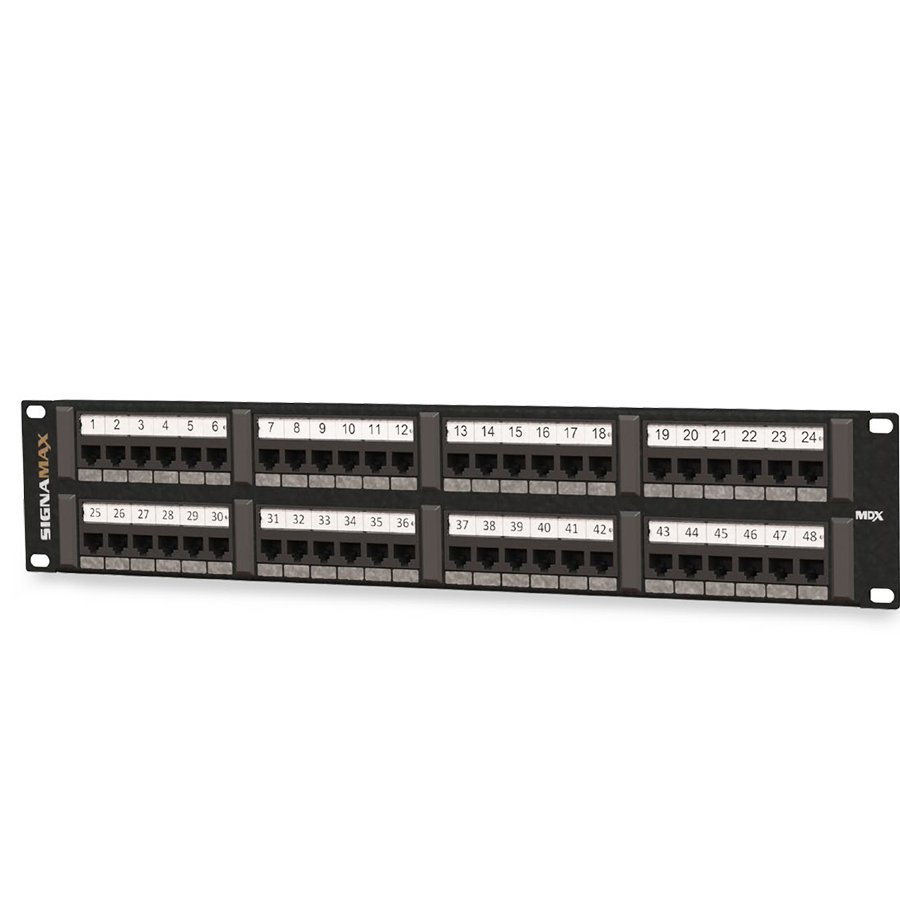

The SIGNAMAX 48458MDX-C6 MDX-Series Patch Panel is designed with cable management within the same rack space as the panel. Slots were designed in between each block of ports for cable management rings offering custom patch cord management configurations. The patch panel exceeds ANSI/TIA-568-C.2 Category 6 component performance.

  • Exceeds ANSI/TIA-568-C.2 Category 6 component performance
  • UL listed and TAA compliant
  • Designed with multiple cable management options in the front and rear of the panel to accommodate any install configuration

Product Highlights

The Signamax MDX Series Patch Panels provide superior transmission performance and support emerging technologies and applications such as 10 Gigabit Ethernet over copper.

Product Information

Standard Information

  • Brand: SIGNAMAX
  • Manufacturer Part Number: 48458MDX-C6C
Technical Specifications
TRANSMISSION PERFORMANCE
ANSI/TIA-568-C.2: exceeds category 6 (1 MHz–250 MHz) component specifications
TRANSMISSION MEDIA
Unscreened twisted pair (U/UTP)
JACK TYPE
8p8c (8-position, 8-contact) “RJ45” style
WIRING SCHEME
ANSI/TIA-568-C.2: T568A & T568B ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)
WIRE GAUGE
22 to 24 AWG (0.644 to 0.511 mm)
ELECTRICAL Insulation Resistance
Min 500 MOhm @ 100 Vdc
ELECTRICAL Dielectric Withstanding Voltage
1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
ELECTRICAL Spring Wire Contact Resistance
Max 20 mOhm
ELECTRICAL IDC Contact Resistance
Max 2.5 mOhm
Current Rating
Refer to downloadable spec sheet
Panel
Steel with corrosive resistant black finish
Connector Housing
High impact thermoplastic, UL94V-0 fire retardant
Spring Wire
Phosphor bronze alloy plated with 50 µin of gold over 70 to 100 µin of nickel
IDC
110 type, phosphor bronze alloy with 100 µin 100% tin alloy
Total Contact Force
Min 800 g for 8 wire leads with FCC compliant 8p8c plug
Retention
50 N (11 lbf) for 60 ± 5 s
Mating Cycle Life
Min 750 cycles with FCC compliant 8p8c plug
Panel Dimensions
19-in rack mountable
Depth Panel (only)
1.4” (35 mm)
Depth CMB-250-P
Front-mounted: 2.5” (65 mm); Rear-mounted: 2.1” (80 mm)
Depth CMB-550-M
Front-mounted: 5.6” (140 mm); Rear-mounted: 6.1” (155 mm)
Depth CMBRKT-01
2.5” (65 mm) front-mount only
Height 24458MDX-C6
1 RMU (1.75” (44.45 mm))
Height 48458MDX-C6
2 RMU (3.50” (88.90 mm))
Operating Temperature
14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature
-40 °F to 158 °F (-40 °C to 70 °C)
Operating RH
93% Max (non-condensing)
COMPLIANCE
ANSI/TIA-568-C.2, IEEE 802.3 ab, FCC Part 68 Subpart F, UL 94V-0, UL 1863, IEC 60603-7
APPLICATIONS
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
Number of Ports
48
Catalog ID
SMX48458MDX-C6
ADI Part Number
47-48458MDX0
Brand Name
Signamax
Manufacturer
Signamax, Inc
Manufacturer Part Number
48458MDX-C6
Product Name
Category 6 MDX-Series Unscreened Patch Panels
Product Type
Patch Panel
Material
Steel
Compatible Rack Unit
1U
Depth
1.4"
Height
1.75"
Ports
48 Ports
Category
C6
Rack Units
2 RMU
Shielding
Unscreened
