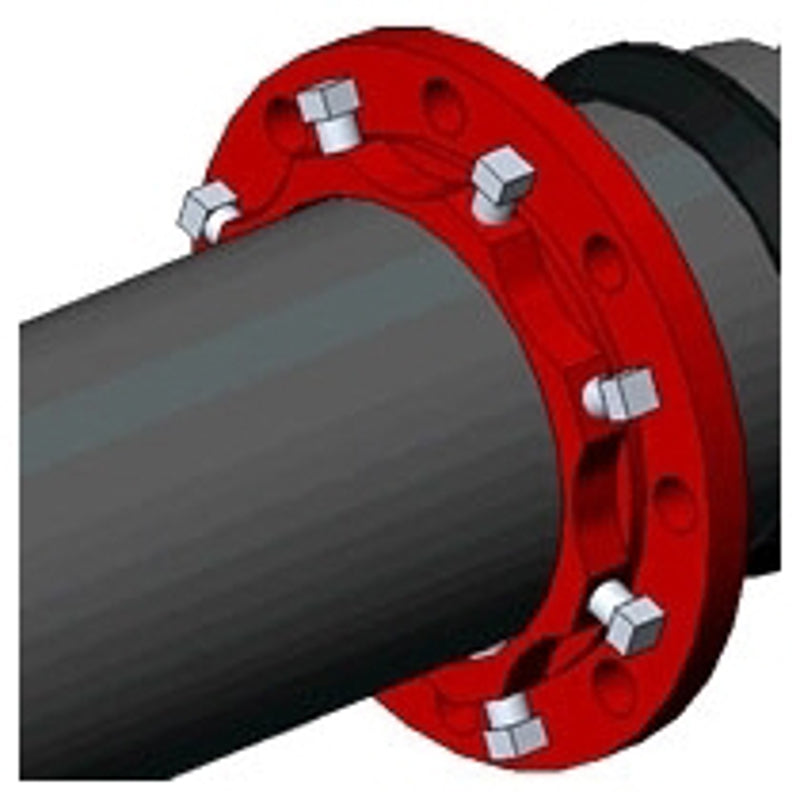

Sigma ZF2-C8 Zip Flange 8 in. Red Alkyd Painted Ductile Iron Standard Flange Adapter

Product Description

The Sigma Corporation ZF2-C8 is an eight-inch zip flange made from high strength ductile iron. This standard flange adapter is painted with red alkyd for enhanced protection. Designed for various applications, it is compatible with water, wastewater, and many chemicals.

• Manufactured from ductile iron per ASTM A536, grade 65-45-12
• Includes standard SBR (Buna-S) gasket
• Pressure rating of 200 PSI

Product Highlights

Utilize this zip flange for reliable performance in plumbing and HVAC installations. It meets ANSI/AWWA standards for durability and safety.

Product Information

Standard Information

• Brand: Sigma Corporation
• MPN: ZF2-C8

Technical Specifications

• Material: Ductile iron
• Gasket Type: SBR (Buna-S)
• Pressure Rating: 200 PSI
• Manufactured To Standards: ANSI/AWWA C110/A21.10, ASME B16.1
• Traceability: Individually cast with heat code
• Set Screws: AISI 4140 steel, heat treated and zinc-plated
• Adapter Dimensions: Drilling to ANSI B16.1 - 125 lb
