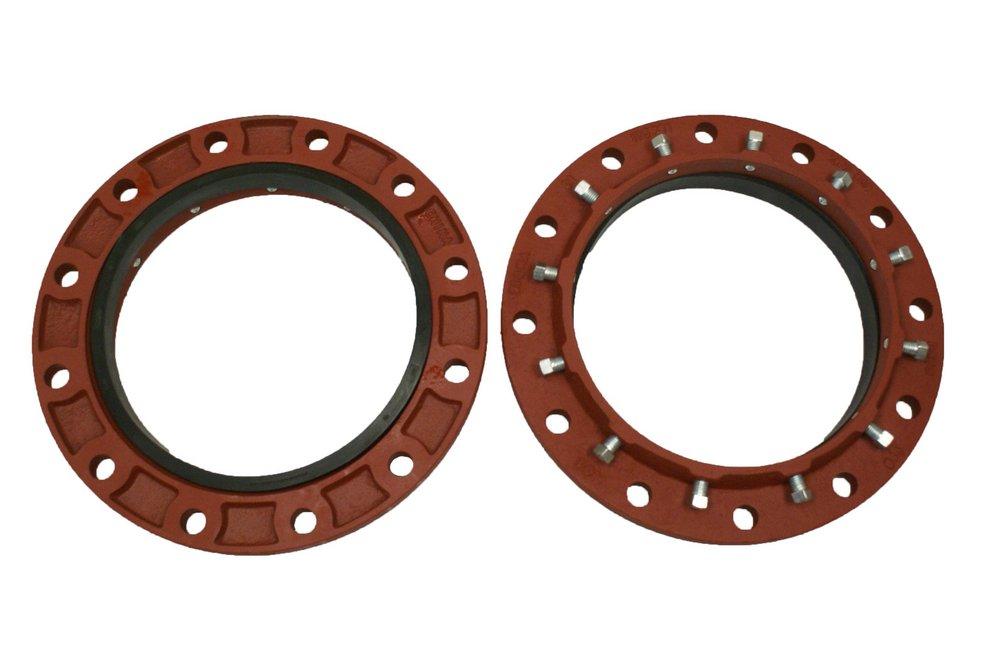

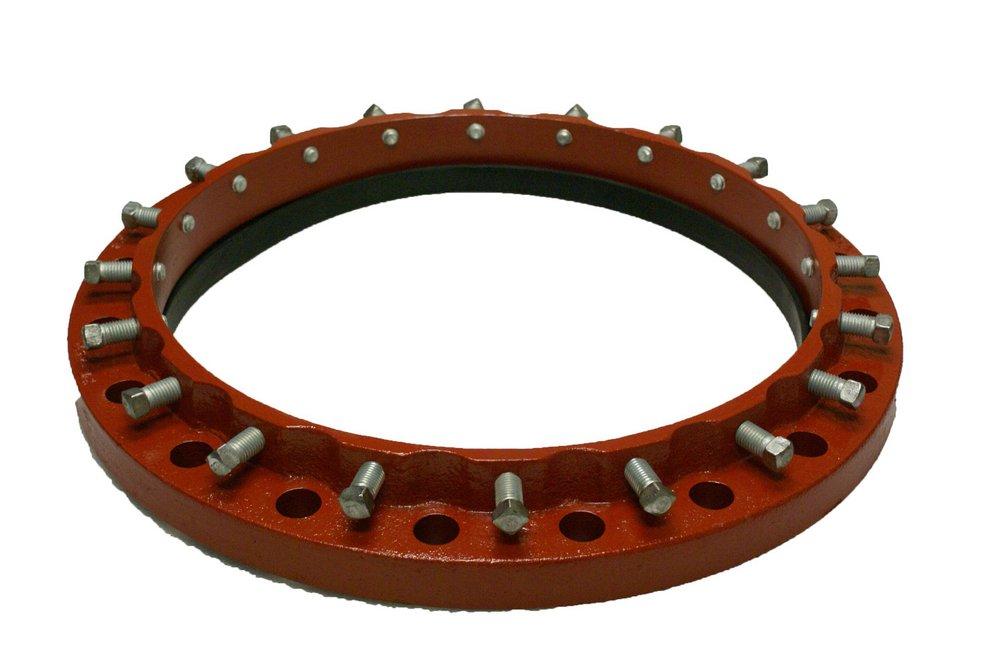

Sigma ZF2-C8 Ductile Iron Cast Iron Pipe Restrained Flange Adapter

Product Description

The Sigma ZF2-C8 is a ductile iron cast iron pipe restrained flange adapter. This product is ideal for connecting ductile iron or steel pipes to flanged fittings, pumps, and valves. It offers reliability and strength for various applications.

• Manufactured from high strength ductile iron that meets ASTM A536 standards.
• Equipped with SBR gasket suitable for water and moderate chemicals.
• Designed with set screws made from heat-treated AISI 4140 steel.

Product Highlights

This flange adapter provides a secure connection with a pressure rating of 200 PSI. It has a maximum temperature rating of one hundred sixty degrees Fahrenheit and a minimum temperature rating of negative ten degrees Fahrenheit.

Product Information

Standard Information

• Brand: Sigma
• Model Number: ZF2-C8

Technical Specifications

• Weight: 16 lb
• Material: Ductile Iron
• For Use With: Ductile Iron or Steel Pipe to Flange Fitting, Pump, Valve
• Specifications Met: ASTM A536, ANSI/AWWA C110/A21.10, ASME B16.1
• Maximum Pressure Rating: 200 PSI
• Maximum Temperature Rating: +160 degrees Fahrenheit
• Minimum Temperature Rating: -10 degrees Fahrenheit
