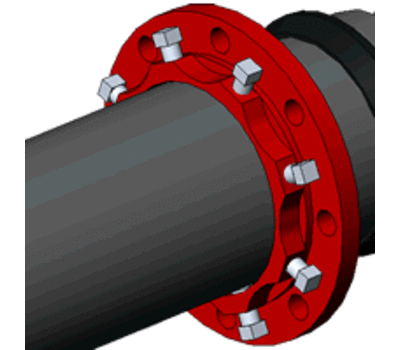

Sigma Corporation ZF2-C6 Zip Flange 6 in. Red Alkyd Painted Ductile Iron Standard Flange Adapter

Product Description

The Sigma Corporation ZF2-C6 is a six-inch zip flange designed for use in various piping applications. This flange is built from high-strength ductile iron, providing durability and reliability in demanding environments. It meets essential industry standards for compatibility and performance.

• Manufactured from ASTM A536, grade 65-45-12 ductile iron.
• Standard gasket is SBR (Buna-S), suitable for water and moderate chemicals.
• Set screws made from AISI 4140 steel, heat treated and zinc-plated.

Product Highlights

This zip flange is engineered for easy installation and secure operation. It is cast with traceability information for quality assurance and is rated for up to 200 PSI pressure.

Product Information

Standard Information

• Brand: Sigma Corporation
• MPN: ZF2-C6

Technical Specifications

• Material: Ductile Iron
• Gasket Material: SBR (Buna-S)
• Pressure Rating: 200 PSI
• Dimensions: Manufactured to ANSI/AWWA standards
• Drilling: ANSI B16.1 - 125 lb
• Heat Code: Individually cast with traceable heat code
• Installation: Follow manufacturer recommendations
