Sigma Corporation SLCE6 One-Lok D-SLCE Series 6 in Pipe Restraint Gland

Product Description

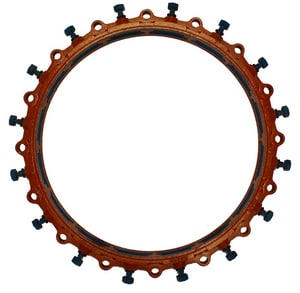

The Sigma Corporation SLCE6 One-Lok D-SLCE Series pipe restraint gland is a six-inch domestic wedge action gland with a mechanical joint. It is made from ductile iron and features a cationic epoxy coating. This product includes three restraint segments and is specifically designed for use with C909 PVC pipes. The One-Lok pipe restraint systems are effective for securing molecular oriented PVC pipes that meet AWWA C909 standards.

• Nominal size of six inches
• Constructed from ductile iron with a protective epoxy coating
• Designed for compatibility with C909 PVC pipes

Product Highlights

The Sigma Corporation SLCE6 features a robust design ideal for reliable pipe restraint applications.

Product Information

Standard Information

• Type: Domestic, Wedge Action
• Item Name: Pipe Restraint Gland

Technical Specifications

• Sub Brand: One-Lok
• Series: D-SLCE
• Nominal Size: Six inches
• Connection Type: Mechanical Joint
• Number of Restraint Segments: Three
• Material: Ductile Iron
• Finish: Cationic Epoxy Coated
• Pressure Rating: 165 - 305 psi
• Diameter: 6.9 inches Outside Pipe
• For Use With: C909 PVC Pipes
• Standards/Approvals: ASTM A536 Grade 65-45-12, AWWA C111/ANSI A21.11, C153/ANSI 21.53, FM Approved
• Application: PVC Pipe
• Collection: One-Lok
• End Connection 1: Mechanical Joint
• FM Approved: Yes
• Fits Pipe Size: Six inches
• Product Type: Wedge Restraint
