Sigma 811016211 Street Elbow 1/2 in Mnpt X Fnpt 150 Lb Galvanized

Product Description

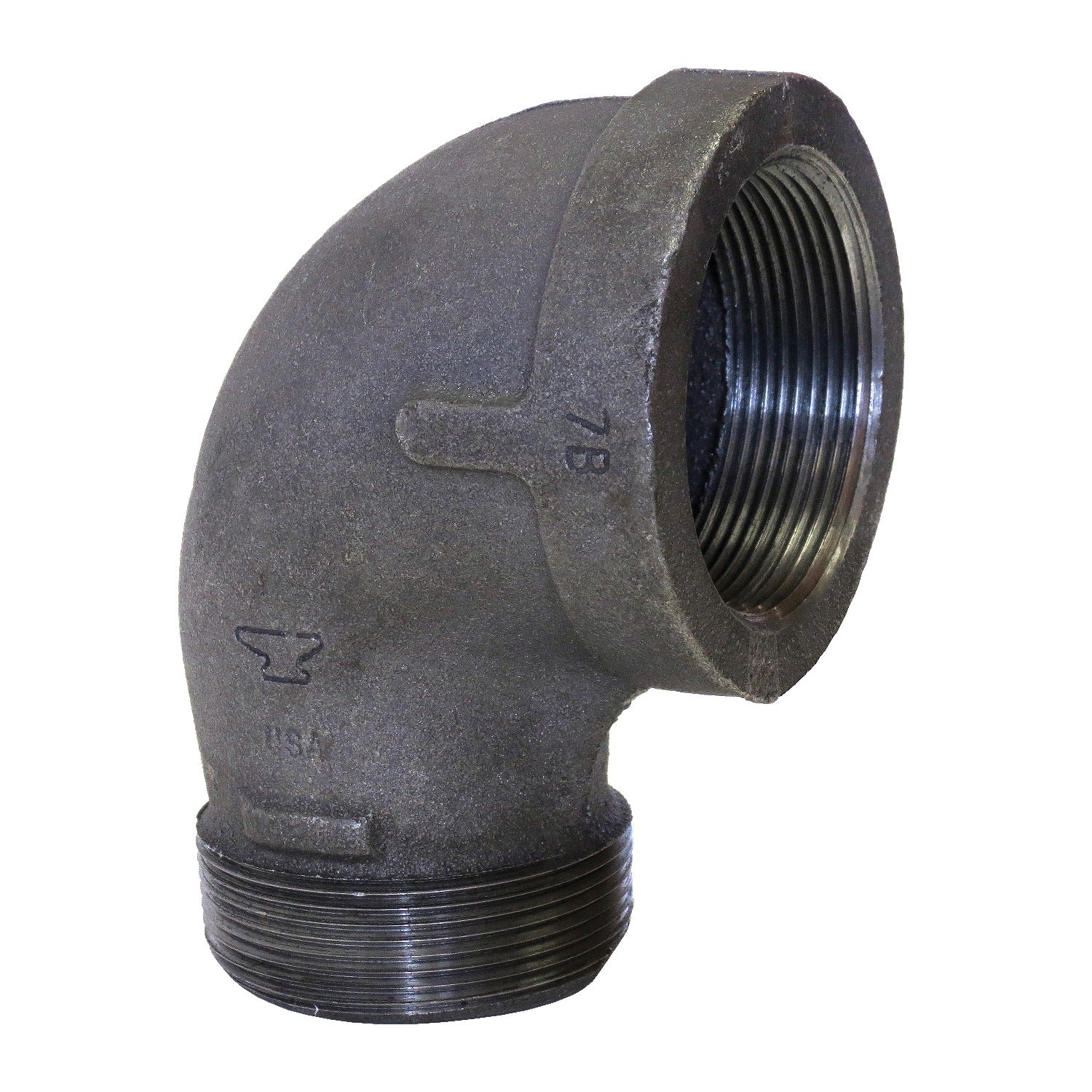

The SIGMA 811016211 is a FIG 3103 standard street elbow designed for threaded pipe systems in plumbing, mechanical, and gas distribution applications. This fitting connects male NPT to female NPT ends in a 90-degree configuration, allowing direction changes in tight spaces without the need for a separate coupling. Rated at 150 lb, the fitting is constructed from malleable iron with a galvanized finish that provides corrosion resistance in exposed or mildly corrosive environments. It carries a 1/2 inch nominal pipe size and is suitable for steam, water, gas, and air service within its pressure rating.

This street elbow is commonly installed in residential and light commercial piping systems where a compact directional change is required. Its MNPT x FNPT configuration makes it useful when threading directly into a valve, fitting, or equipment port on one end while accepting a male-threaded pipe or fitting on the other. Licensed plumbers, pipefitters, and HVAC technicians working on gas or hydronic systems will find this fitting appropriate for standard iron pipe assemblies.

Key Features

• FIG 3103 standard street elbow geometry for compact 90-degree directional changes
• MNPT x FNPT end style for direct connection without an intermediate coupling
• 150 lb pressure rating suitable for water, steam, gas, and compressed air service
• Malleable iron construction for durability and resistance to mechanical stress
• Galvanized finish provides corrosion protection in exposed installations
• 1/2 inch nominal pipe size for common residential and light commercial piping

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 1/2 inch NPT threaded iron pipe systems in plumbing, HVAC, and gas distribution applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, the International Plumbing Code, or the International Fuel Gas Code as applicable. Shut off and depressurize the pipe system before threading or unthreading any fittings. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly. Do not overtighten, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Figure Number: FIG 3103
• Nominal Pipe Size: 1/2 inch
• End Style: MNPT x FNPT
• Pressure Rating: 150 lb
• Material: Malleable Iron
• Finish: Galvanized

Standard Information

• Brand: SIGMA
• Manufacturer Part Number: 811016211
