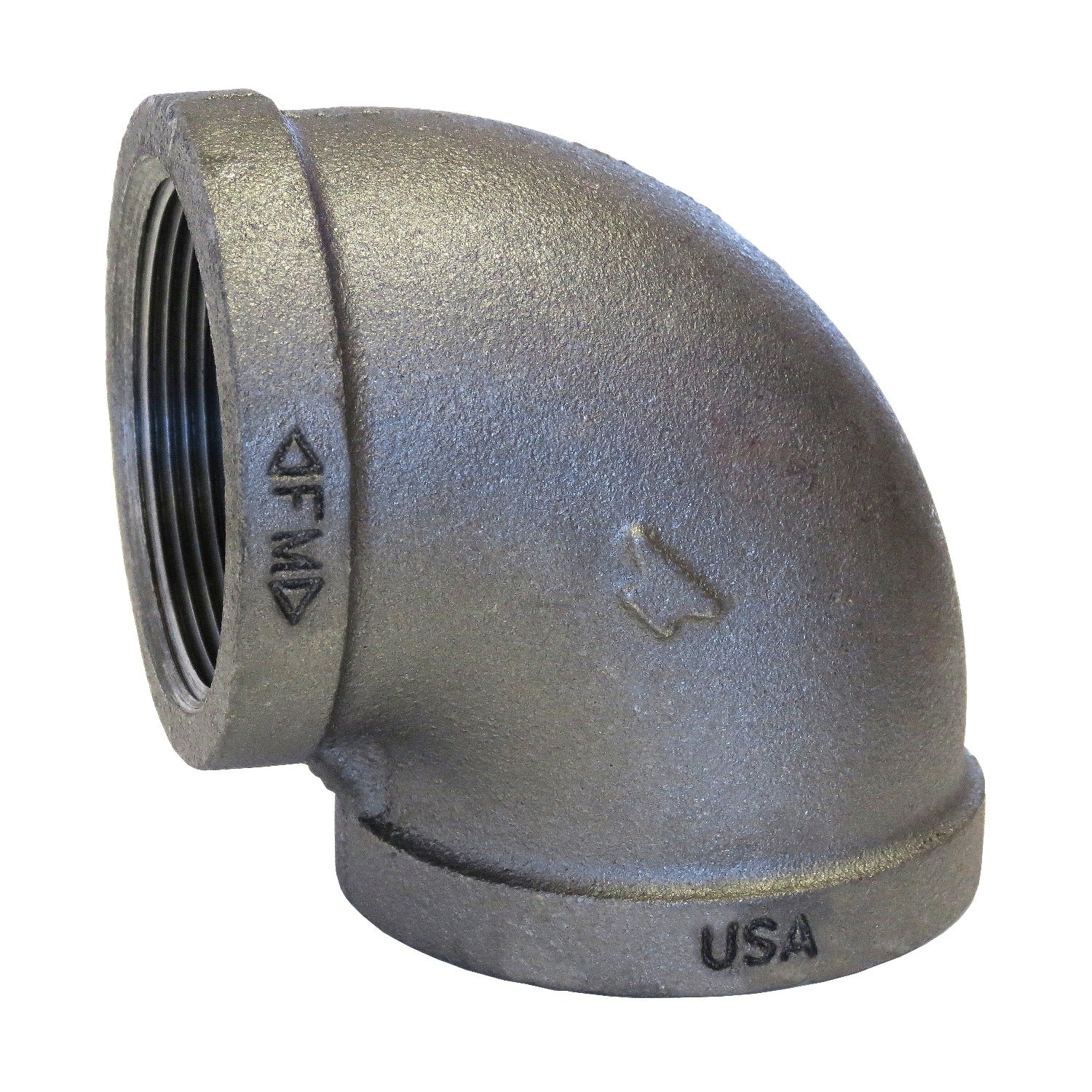

Sigma 811001619 90 Degree Pipe Elbow 1-1/2 in Fnpt 150 Lb

Product Description

The SIGMA 811001619 is a FIG 3101 90-degree pipe elbow rated at 150 lb, constructed from galvanized malleable iron for long-lasting corrosion resistance in threaded piping systems. With a 1-1/2 inch nominal size and female National Pipe Thread (FNPT) connections on both ends, this elbow changes flow direction by 90 degrees in standard threaded pipe runs. It is a standard fitting used by licensed plumbers and pipefitters working on water supply, gas distribution, and general industrial piping where a durable threaded fitting is required.

This fitting is suited for residential and light commercial plumbing, heating, and gas piping systems where 150 lb rated malleable iron fittings are specified. The galvanized finish provides added protection in wet or corrosive environments. It is commonly installed in threaded black or galvanized pipe assemblies following standard building plumbing and mechanical codes.

Key Features

• 90-degree elbow configuration for direction changes in threaded pipe runs
• 1-1/2 inch nominal FNPT connections on both ends for standard threaded pipe
• 150 lb pressure rating suitable for water, gas, and general piping service
• Malleable iron construction provides strength and resistance to impact
• Galvanized finish for corrosion protection in wet or outdoor environments

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch nominal threaded malleable iron piping systems rated at 150 lb.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, the International Plumbing Code (IPC), or the International Fuel Gas Code (IFGC) where applicable. Shut off and depressurize the piping system fully before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to male threads before assembly. Do not over-tighten, as this can crack the fitting body.

Technical Specifications

• Figure Number: FIG 3101
• End Style: FNPT (Female National Pipe Thread)
• Elbow Angle: 90 degrees
• Nominal Size: 1-1/2 inches
• Pressure Rating: 150 lb
• Material: Malleable Iron
• Finish: Galvanized

Standard Information

• Brand: SIGMA
• Manufacturer Part Number: 811001619
