Siemon Company 9C6R4-A5-06AR1A Cat6a Utp Riser Cable

Product Description

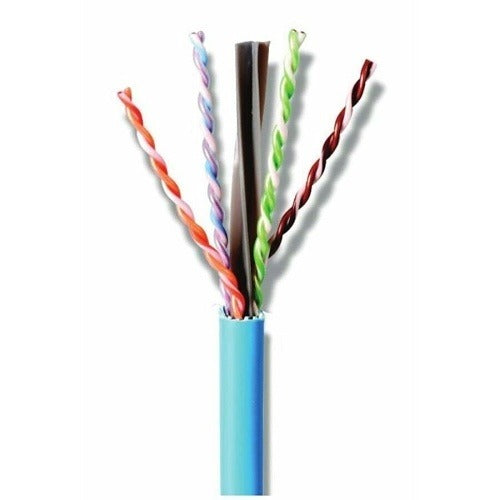

The SIEMON COMPANY 9C6R4-A5-06AR1A is a Category 6A unshielded twisted pair (UTP) copper riser cable designed for high-performance structured cabling installations. Built with four solid copper conductor pairs, this cable supports 10-Gigabit Ethernet and other demanding network applications. Its riser (CMR) rating makes it suitable for vertical runs between floors in commercial and residential buildings. Network technicians and low-voltage installers rely on this cable for backbone and horizontal cabling where a clean, code-compliant install is required.

This Cat6A UTP cable is intended for use in riser-rated pathway environments where fire-code-compliant cable routing between building floors is required. It is well-suited for enterprise, commercial, and multi-story residential structured cabling projects. The solid copper conductor construction supports permanent horizontal and backbone runs terminated to Cat6A-rated jacks, patch panels, or field-termination connectors. Installers working to ANSI/TIA-568 or ISO/IEC 11801 cabling standards will find this cable appropriate for those deployments.

Key Features

• Category 6A performance supporting 10-Gigabit Ethernet up to 100 meters
• Unshielded twisted pair (UTP) construction simplifies termination and grounding requirements
• Solid copper conductors optimized for permanent, fixed installations
• Riser (CMR) flame rating for vertical inter-floor cable runs
• 4-pair configuration compatible with standard 8P8C/RJ45 terminations

Compatibility

Designed as an OEM-style structured cabling solution for Cat6A-rated riser installations in commercial and residential network infrastructure.

Installation Notes

Installation should be performed by a licensed low-voltage technician or structured cabling installer in accordance with ANSI/TIA-568 standards and applicable local building codes. Power down any active network equipment connected to the pathway before beginning work. Observe minimum bend radius requirements for Cat6A cable and avoid sharp bends, kinks, or excessive pulling tension that can degrade pair geometry and signal performance. Riser-rated cable must not be substituted for plenum-rated (CMP) cable in air-handling spaces.
