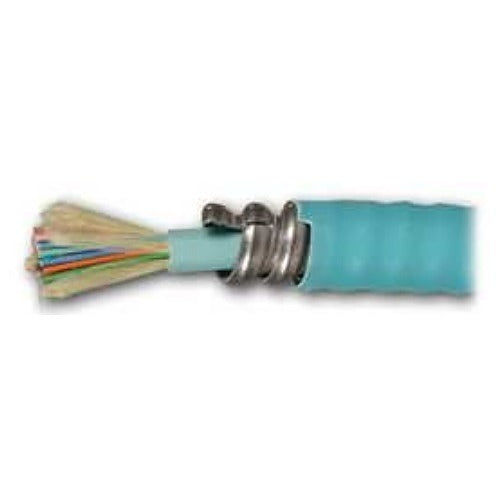

Siemon Company 9BC5P012G-T512A OM4 Armored Plenum Fiber

Product Description

The SIEMON COMPANY 9BC5P012G-T512A is a 12-fiber multimode OM4 armored indoor plenum fiber optic cable designed for high-density structured cabling installations. The OM4-rated multimode glass supports high-bandwidth applications including 40 Gigabit and 100 Gigabit Ethernet over standard multimode distances. The armored construction adds mechanical protection against crushing and rodent damage in demanding indoor runs. The plenum-rated jacket meets NFPA 262 flame and smoke requirements, making it appropriate for installation in air-handling spaces without conduit. Licensed low-voltage cabling technicians and structured cabling installers are the typical trade installing this product.

This cable is suited for horizontal and backbone runs in commercial and enterprise environments where both plenum compliance and added mechanical protection are required. Typical applications include data centers, office buildings, campus interbuilding runs routed through plenum ceilings or raised floors, and anywhere the cable may be exposed to physical stress along its path. The 12-fiber count supports multi-channel parallel optical interconnects and structured cabling trunk assemblies.

Key Features

• OM4 multimode glass supports 40GbE and 100GbE applications
• Armored construction provides crush and rodent resistance for demanding indoor routes
• Plenum-rated jacket suitable for air-handling spaces per NFPA 262 requirements
• 12-fiber count enables multi-channel parallel optical deployments
• Indoor-rated design for structured cabling backbone and horizontal runs

Compatibility

Designed as an OEM-style indoor armored plenum fiber optic cable for use with standard OM4 multimode fiber connectors and termination hardware in commercial structured cabling systems.

Installation Notes

Installation should be performed by a licensed low-voltage or structured cabling technician following ANSI/TIA-568 and applicable local codes. De-energize all active equipment at termination points before splicing or connectorizing. The armored jacket requires an appropriate fiber cable slitter or armor-cutting tool — do not use standard jacketing knives on the armor layer. Plenum-rated cable installed in air-handling spaces must remain within listed plenum pathways to maintain code compliance.
