Siemens WS1400CU Power Mod 400 Amp 50.13x15.19x16.31 Inch

Product Description

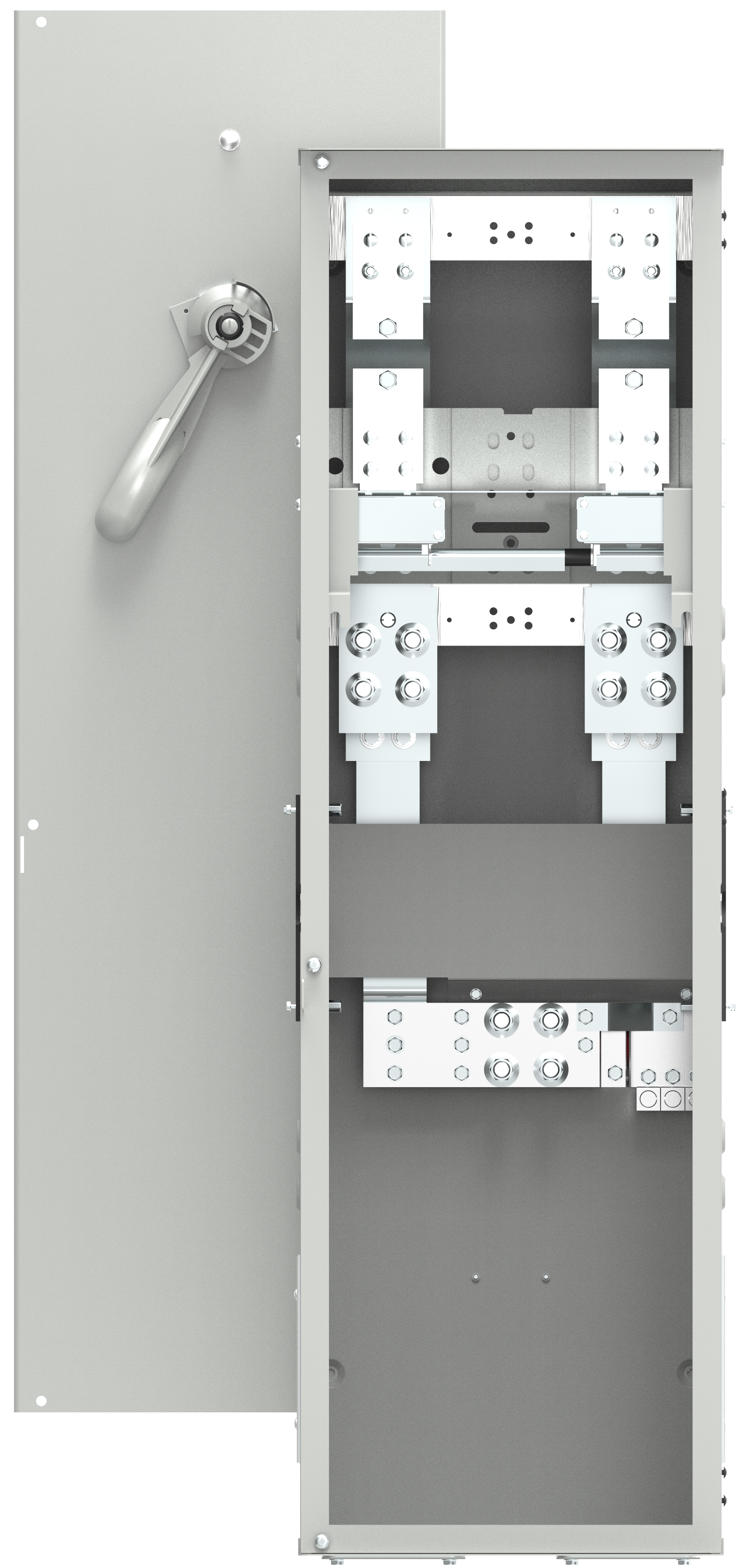

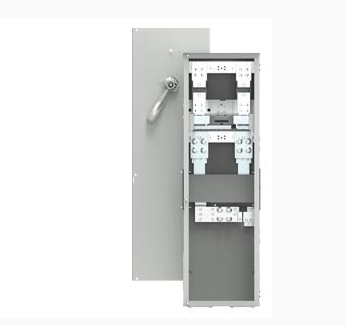

The SIEMENS WS1400CU is a low voltage power mod WS standard switch main. This 1-phase 3-wire system is rated 120/240V (400A) with 100K interrupt. It features a NEMA type 3R enclosure and top/bottom service feed. Note that fuses are not included.

• Nema Type 3r Enclosure
• Top/bottom Service Feed
• Rated 120/240V (400A)

Product Highlights

The SIEMENS WS1400CU power mod is suitable for garden-style, meterrise, and highrise applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: WS1400CU
• Country of Origin: USA

Technical Specifications

• Amperage: 400 Amp
• Applications: GARDEN-STYLE/METERRISE/HIGHRISE
• Cable Entry: TOP/BOTTOM
• Enclosure: TYPE 3R
• Insulated?: Yes
• Number of Phases: 1 Phase
• Type: POWER MOD
• Voltage: 120/240 Volt
• BRAND: Siemens
• Category: Electrical
• Maximum Amperage: 400 A
• Condition: New
• Country of Origin: United States
• Alternate Catalog Number: US2:WS1400CU
• Catalog Number: WS1400CU
• Connection Type: Compression Line Side Lug
• Feed Type: Overhead/Underground
• Fuse Type: Class T
• Material: G90 Galvanized Steel
• Mounting Type: Rail
• Number of Wires: 3
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 98 File No. E25506
• UNSPSC: 39121102
• UPC 12: 040892153453
• Amperage Rating: 400 A
• Enclosure Type: NEMA 3R
• Phase: 1
• Voltage Rating: 120/240 VAC
